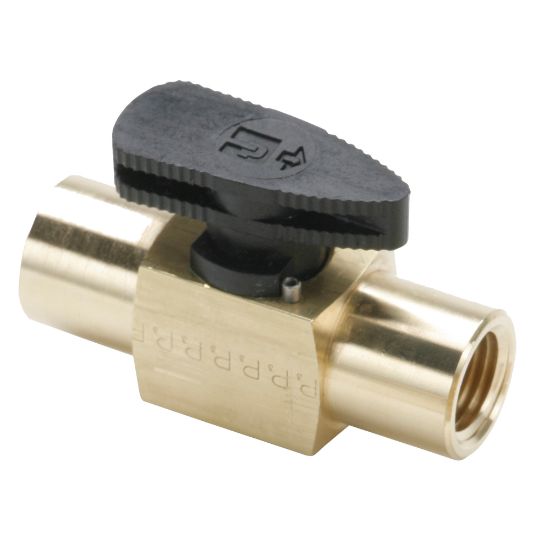

Picture of Parker PV609-2 - Plug Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker PV609-2 - Plug Valves

Parker's plug valve compact design has internal nitrile seats and a one-piece extruded brass body.
Availability:
Quote Required
Partner Available:39 In Stock
Brand Parker
Part No. PV609-2
$39.64
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaximum Operating Pressure17 bar
O-Ring MaterialNitrileStem MaterialAcetal
Dimensional Weight0.27594424460431655 lbDivisionFluid System Connectors Division
Maximum Operating Temperature79 °CBody MaterialBrass
Seal MaterialNitrileMinimum Operating Temperature-40 °C
StyleFemale Pipe to Female PipeConnection 1 StyleFemale Pipe
ShapeIn LineConnection 1 Thread Size (inch)1/8
Connection 2 Thread Size (inch)1/8Connection 2 StyleFemale Pipe
