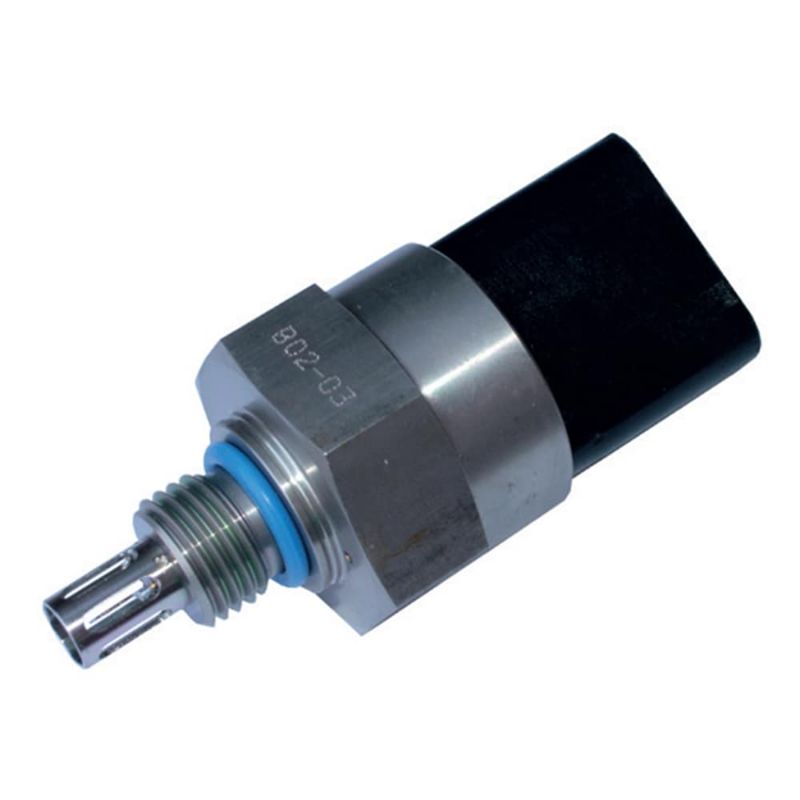

Parker FPS2000 - FPS - Fluid Property Sensor

Modern mobile equipment calls for a hydraulic fluid ensuring profitable and reliable operation. The FPS monitors online Dielectric, Density, Viscosity and temperature.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. FPS2000

$3,764.21

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Operating Humidity	n/a
Height	73 mm	Port Size	M14x1.5
Accuracy	n/a	Technology	Filtration
Cycle Time	10 second	Electrical Requirements	12 to 24 VDC
Division	Hydraulic & Industrial Process Filtration Division EMEA	Maximum Fluid Temperature	150 °C
Materials of Construction	n/a	Flow Rate	Recessed Position Recommended
Sensing Method	Tuning Fork	Product Style	Viscosity Sensor
Operating Temperature	-40 to 125 °C	Product Type	Condition Monitor
Communication Interface	CAN J1939	Industry	General Industrial
Operating Pressure	25 bar	Body Material	Stainless Steel
Signal Output	CAN Bus	ATEX Specifications Met	n/a
Division	Hydraulic & Industrial Process Filtration Division EMEA	Length	50 mm
Brand	Parker	Weight	350
Power Supply Voltage	Max. 60 VDC	For Fluid Type	Water/Oil Emulsions
Port Type	Metric	Ingress Protection Rating	IP67
Specifications Met	CE Certification	Width	30 a/f mm
Seal Material	Fluorocarbon
