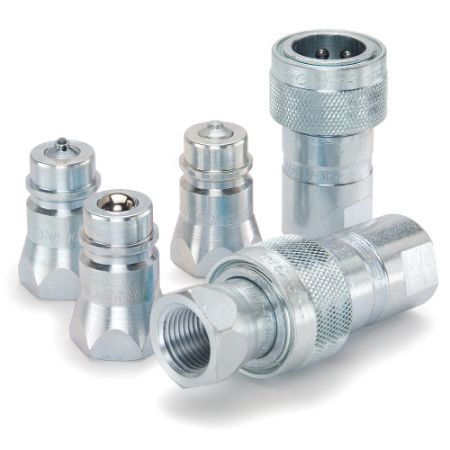

Pioneer, Agriculture Quick Couplings, ISO 5675 / ISO 7241 - 4000 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
4000 Series Couplers (hydraulic) 3000 psi, connect with 4000 Series Nipples and 1/2" 8010 Series, ISO 5675 Pioneer tips and ISO 7241 nipples. Parker's 4000 Series are double shut-off quick couplings with poppet or ball valve options. Couplers have a manual sleeve. Push-pull breakaway sleeve is only available on 1/4" body size with 9/16 - 18 ORB thread, part number 4050P-T6.
4000 Series Nipples (hydraulic) 3000 psi, connect with 4000 Series Couplers and 4200 Series Couplers. Nipples are available with a poppet or ball valve.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Material: Steel
• Port Ends: Female NPTF, Female ORB, Male ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Agriculture
• Mobile Equipment
• Construction
• Snow removal
• Industrial
Features/Benefits:
• Proven design for rugged applications
• Poppet or ball valve option
• Critical parts are hardened for durability
• 1/2" size globally connects with ISO 5675 Pioneer tips and ISO 7241 nipples
Applications:
• Tractors and agricultural equipment
• Hydraulic loaders
• Add-on hydraulic circuits
• Hydraulic tools
• Snow plow attachments
Read More...4000 Series Nipples (hydraulic) 3000 psi, connect with 4000 Series Couplers and 4200 Series Couplers. Nipples are available with a poppet or ball valve.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Material: Steel
• Port Ends: Female NPTF, Female ORB, Male ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Agriculture
• Mobile Equipment
• Construction
• Snow removal
• Industrial
Features/Benefits:
• Proven design for rugged applications
• Poppet or ball valve option
• Critical parts are hardened for durability
• 1/2" size globally connects with ISO 5675 Pioneer tips and ISO 7241 nipples
Applications:
• Tractors and agricultural equipment
• Hydraulic loaders
• Add-on hydraulic circuits
• Hydraulic tools
• Snow plow attachments
| Action | Part No. | Availability | Partner Available | Price | UOM | Flow Rate | Plating Type | Application | Specifications Met | Seal Material | Hex Size | Body Material | Minimum Operating Temperature | Division | Dimensional Weight | Maximum Operating Temperature | Maximum Operating Pressure | Connection Thread Size (inch) | Coupling Half | Valve Type | Body Size (inch) | Product Type | Connection Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4010-2P | 21 In Stock | 266 In Stock | $13.98/each | EA | 3 Gal/min | Zinc with Clear Trivalent Chromate | Hydraulics | n/a | Nitrile | 0.75 inch | Steel | -40 °F | Quick Coupling Division | 0.01999400479616307 lb | 250 °F | 3000 psi | 1/4 - 18 | Male Nipple | Poppet | 1/4 | Manual sleeve | Female NPTF | |
| 4010-3P | 44 In Stock | 254 In Stock | $17.67/each | EA | 6 Gal/min | Zinc with Clear Trivalent Chromate | Hydraulics | n/a | Nitrile | 0.94 inch | Steel | -40 °F | Quick Coupling Division | 0.03998800959232614 lb | 250 °F | 3000 psi | 3/8 - 18 | Male Nipple | Poppet | 3/8 | Manual sleeve | Female NPTF | |
| 4010-6P | 22 In Stock | 131 In Stock | $58.94/each | EA | 50 Gal/min | Zinc with Clear Trivalent Chromate | Hydraulics | n/a | Nitrile | 1.63 inch | Steel | -40 °F | Quick Coupling Division | 0.11236510791366906 lb | 250 °F | 3000 psi | 1 - 11 1/2 | Male Nipple | Poppet | 1 | Manual sleeve | Female NPTF | |
| 4010-T6 | Quote Required | 44 In Stock | $20.65/each | EA | 3 Gal/min | Zinc with Clear Trivalent Chromate | Hydraulics | n/a | Nitrile | 0.75 inch | Steel | -40 °F | Quick Coupling Division | 0.01999400479616307 lb | 250 °F | 3000 psi | 9/16 - 18 | Male Nipple | Poppet | 1/4 | Manual sleeve | Female ORB | |
| 4050-15 | 33 In Stock | 67 In Stock | $45.20/each | EA | 12 Gal/min | Zinc with Clear Trivalent Chromate | Hydraulics | ISO 5675 | Nitrile | 1.06 inch | Steel | -40 °F | Quick Coupling Division | 0.15995203836930455 lb | 250 °F | 3000 psi | 3/4 - 16 | Female Coupler | Ball | 1/2 | Manual sleeve | Female ORB | |
| 4050-15P | 10 In Stock | 97 In Stock | $48.26/each | EA | 12 Gal/min | Zinc with Clear Trivalent Chromate | Hydraulics | ISO 5675 | Nitrile | 1.06 inch | Steel | -40 °F | Quick Coupling Division | 0.15995203836930455 lb | 250 °F | 3000 psi | 3/4 - 16 | Female Coupler | Poppet | 1/2 | Manual sleeve | Female ORB | |
| 4050-16 | Quote Required | 62 In Stock | $51.63/each | EA | 12 Gal/min | Zinc with Clear Trivalent Chromate | General Purpose | ISO 5675 | Nitrile | 1.06 inch | Steel | -40 °F | Quick Coupling Division | 0.15995203836930455 lb | 250 °F | 3000 psi | 7/8 - 14 | Female Coupler | Ball | 1/2 | Manual sleeve | Female ORB | |
| 4050-2P | 25 In Stock | 344 In Stock | $32.91/each | EA | 3 Gal/min | Zinc with Clear Trivalent Chromate | General Purpose | n/a | Nitrile | 0.88 inch | Steel | -40 °F | Quick Coupling Division | 0.03998800959232614 lb | 250 °F | 3000 psi | 1/4 - 18 | Female Coupler | Poppet | 1/4 | Manual sleeve | Female NPTF | |
| 4050-3P | 25 In Stock | 197 In Stock | $43.98/each | EA | 6 Gal/min | Zinc with Clear Trivalent Chromate | Hydraulics | n/a | Nitrile | 0.94 inch | Steel | -40 °F | Quick Coupling Division | 0.07997601918465227 lb | 250 °F | 3000 psi | 3/8 - 18 | Female Coupler | Poppet | 3/8 | Manual sleeve | Female NPTF | |
| 4050-4 | 105 In Stock | 543 In Stock | $39.75/each | EA | 12 Gal/min | Zinc with Clear Trivalent Chromate | Hydraulics | ISO 5675 | Nitrile | 1.06 inch | Steel | -40 °F | Quick Coupling Division | 0.15995203836930455 lb | 250 °F | 3000 psi | 1/2 - 14 | Female Coupler | Ball | 1/2 | Manual sleeve | Female NPTF | |
| 4050-4P | 6 In Stock | 175 In Stock | $39.75/each | EA | 12 Gal/min | Zinc with Clear Trivalent Chromate | Hydraulics | ISO 5675 | Nitrile | 1.06 inch | Steel | -40 °F | Quick Coupling Division | 0.15995203836930455 lb | 250 °F | 3000 psi | 1/2 - 14 | Female Coupler | Poppet | 1/2 | Manual sleeve | Female NPTF | |
| 4050-5 | 8 In Stock | 103 In Stock | $54.39/each | EA | 12 Gal/min | Zinc with Clear Trivalent Chromate | Hydraulics | ISO 5675 | Nitrile | 1.13 inch | Steel | -40 °F | Quick Coupling Division | 0.15995203836930455 lb | 250 °F | 3000 psi | 3/4 - 14 | Female Coupler | Ball | 1/2 | Manual sleeve | Female NPTF | |
| 4050-5P | 6 In Stock | 40 In Stock | $58.62/each | EA | 12 Gal/min | Zinc with Clear Trivalent Chromate | General Purpose | ISO 5675 | Nitrile | 1.13 inch | Steel | -40 °F | Quick Coupling Division | 0.15995203836930455 lb | 250 °F | 3000 psi | 3/4 - 14 | Female Coupler | Poppet | 1/2 | Manual sleeve | Female NPTF | |
| 4050-6P | 29 In Stock | 130 In Stock | $124.95/each | EA | 50 Gal/min | Zinc with Clear Trivalent Chromate | General Purpose | n/a | Nitrile | 1.63 inch | Steel | -40 °F | Quick Coupling Division | 0.22473021582733813 lb | 250 °F | 3000 psi | 1 - 11 1/2 | Female Coupler | Poppet | 1 | Manual sleeve | Female NPTF | |
| 4050-T6 | Quote Required | 9 In Stock | $38.69/each | EA | 3 Gal/min | Zinc with Clear Trivalent Chromate | General Purpose | n/a | Nitrile | 0.88 inch | Steel | -40 °F | Quick Coupling Division | 0.02670863309352518 lb | 250 °F | 3000 psi | 9/16 - 18 | Female Coupler | Poppet | 1/4 | Manual sleeve | Female ORB | |
| 4110-5 | 27 In Stock | 184 In Stock | $47.80/each | EA | 28 Gal/min | Zinc with Clear Trivalent Chromate | Hydraulics | n/a | n/a | 1.31 inch | Steel | -40 °F | Quick Coupling Division | 0.062320143884892085 lb | 250 °F | 3000 psi | 3/4 - 14 | Male Nipple | Ball | 3/4 | Manual sleeve | Female NPTF | |
| 4150-5 | 29 In Stock | 111 In Stock | $101.26/each | EA | 28 Gal/min | Zinc with Clear Trivalent Chromate | General Purpose | n/a | Nitrile | 1.38 inch | Steel | -40 °F | Quick Coupling Division | 0.12464028776978417 lb | 250 °F | 3000 psi | 3/4 - 14 | Female Coupler | Ball | 3/4 | Manual sleeve | Female NPTF |
