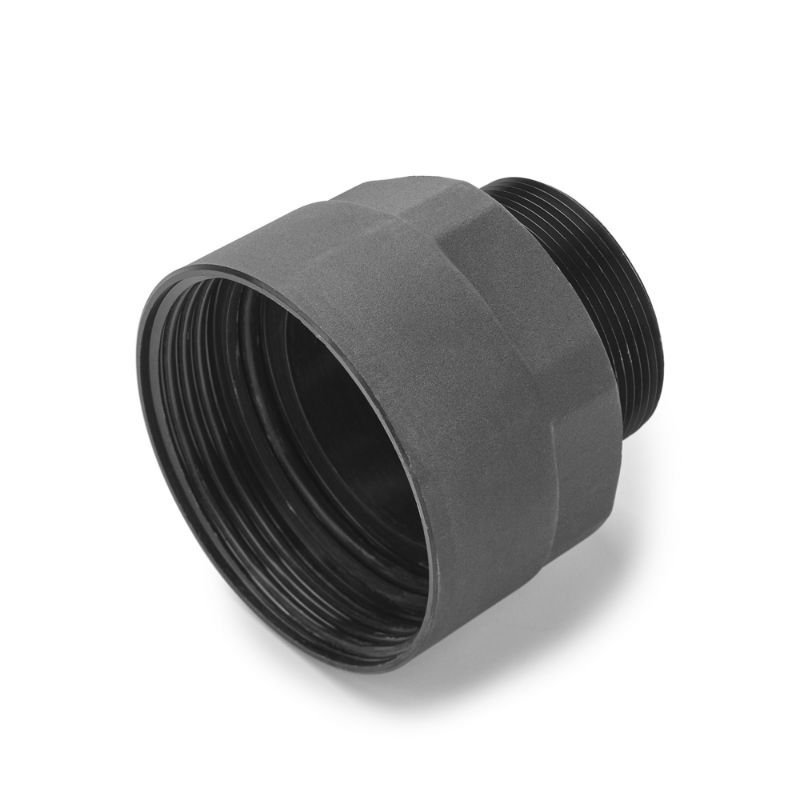

Parker 6611 63 41 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6611 63 41

$318.38/each

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Transair
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Industry	General Industrial
Weight	2.71 lb	Maximum Operating Temperature	85 °C
For Fluid Type	Industrial Gas	Assembly Time	0.17 Hours
Division	Low Pressure Connectors Europe Division	Configuration	Port to Swivel Port
Connection 2 Size	2-1/2 inch	Vacuum Pressure Rating	0.03 inch-Hg
Connection 1 Size	63 mm	Body Material	Treated Aluminum
Connection 2 Type	Male NPT	Technology	Fluid & Gas Handling
Quantity per Box	1	Product Type	Compressed Air Piping
Specifications Met	TUV	Connection 1 Type	Pipe
Product Style	Stud Fitting with Nut	Division	Fluid System Connectors Division
Shape	Straight	Minimum Operating Temperature	-20 °C
Application	Inert Gas	Pipe O.D. (mm)	63
Pipe O.D. (inch)	2-1/2	Silicone Free	Yes
Connection Thread Size (inch)	2-1/2	Product Style	Male NPT
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
