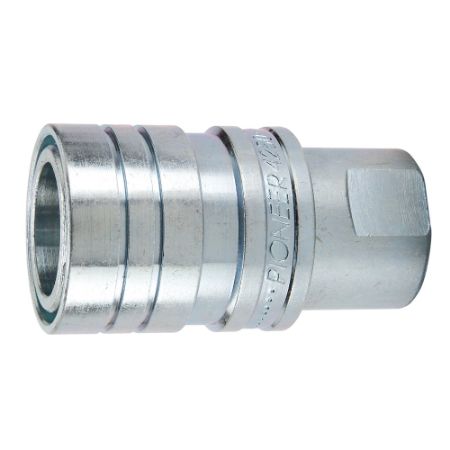

Pioneer, Agriculture Quick Couplers, Breakaway Sleeve, ISO 5675 / ISO 7241 - 4200 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
4200 Series Couplers (hydraulic) 3000 psi, connect with 1/2"" 8010 Series Nipples (ISO 5675, Pioneer male tips) and 4000 Series Nipples (3/8"" size).
Parker's 4200 Series are double shut-off quick couplings and the 1/2"" size is compatible with 5001-4 and 5006-4 breakaway clamps. Couplers have push to connect operation and a push/pull breakaway sleeve. When the coupler is clamp or bulkhead mounted it is ideal for use in applications where a breakaway feature is desirable. Couplers have a poppet or ball valve option.
Technical Characteristics:
• Sizes: 3/8” & 1/2”
• Material: Steel
• Port Ends: Female NPTF, Female ORB
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Agriculture
• Mobile Equipment
• Construction
Features/Benefits:
• One handed push to connect operation
• Push - pull breakaway sleeve allows coupler to disconnect in the case of an implement breakaway
• Poppet or ball valve option
• Critical parts are hardened for durability
• 1/2"" size globally connects with Pioneer universal male tips (nipples) complying to ISO 5675
Applications:
• Hydraulic Loaders
• Add-on hydraulic circuits
• Implement breakaway
• Hydraulic tools
• Tractors / mobile equipment
Read More...Parker's 4200 Series are double shut-off quick couplings and the 1/2"" size is compatible with 5001-4 and 5006-4 breakaway clamps. Couplers have push to connect operation and a push/pull breakaway sleeve. When the coupler is clamp or bulkhead mounted it is ideal for use in applications where a breakaway feature is desirable. Couplers have a poppet or ball valve option.
Technical Characteristics:
• Sizes: 3/8” & 1/2”
• Material: Steel
• Port Ends: Female NPTF, Female ORB
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Agriculture
• Mobile Equipment
• Construction
Features/Benefits:
• One handed push to connect operation
• Push - pull breakaway sleeve allows coupler to disconnect in the case of an implement breakaway
• Poppet or ball valve option
• Critical parts are hardened for durability
• 1/2"" size globally connects with Pioneer universal male tips (nipples) complying to ISO 5675
Applications:
• Hydraulic Loaders
• Add-on hydraulic circuits
• Implement breakaway
• Hydraulic tools
• Tractors / mobile equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Dimensional Weight | Minimum Operating Temperature | Division | Maximum Operating Pressure | Seal Material | Thread Size | Coupling Half | Maximum Operating Temperature | Plating Type | Body Material | Lock Type | Specifications Met | Flow Rate | Application | Body Size | Media | Sleeve Type | Connection Type | Connection Thread Size (inch) | Valve Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4250-15 | Quote Required | 33 In Stock | $39.85 | EA | 0.12464028776978417 lb | -40 °F | Quick Coupling Division | 3000 psi | Nitrile | Female | Coupler | 250 °F | Zinc with clear trivalent chromate | Steel | Locking balls | ISO 5675 | 12 Gal/min | General Purpose | 1/2 inch | Hydraulic | Breakaway Sleeve | ORB | 3/4 - 16 | Ball | |
| 4250-15P | Quote Required | 8 In Stock | $51.20 | EA | 0.12464028776978417 lb | -40 °F | Quick Coupling Division | 3000 psi | Nitrile | Female | Coupler | 250 °F | Zinc with clear trivalent chromate | Steel | Locking balls | ISO 5675 | 12 Gal/min | General Purpose | 1/2 inch | Hydraulic | Breakaway Sleeve | ORB | 3/4 - 16 | Poppet | |
| 4250-3P | 2 Limited Stock | 40 In Stock | $64.30 | EA | 0.05341726618705036 lb | -40 °F | Quick Coupling Division | 3000 psi | Nitrile | Female | Coupler | 250 °F | Zinc with clear trivalent chromate | Steel | Locking balls | N/A | 6 Gal/min | Hydraulics | 3/8 inch | Hydraulic | Breakaway Sleeve | NPTF | 3/8 - 18 | Poppet | |
| 4250-4 | 8 In Stock | 90 In Stock | $37.60 | EA | 0.15995203836930455 lb | -40 °F | Quick Coupling Division | 3000 psi | Nitrile | Female | Coupler | 250 °F | Zinc with clear trivalent chromate | Steel | Locking balls | ISO 5675 | 12 Gal/min | General Purpose | 1/2 inch | Hydraulic | Breakaway Sleeve | NPTF | 1/2 - 14 | Ball | |
| 4250-4P | Quote Required | 46 In Stock | $41.82 | EA | 0.15995203836930455 lb | -40 °F | Quick Coupling Division | 3000 psi | Nitrile | Female | Coupler | 250 °F | Zinc with clear trivalent chromate | Steel | Locking balls | ISO 5675 | 12 Gal/min | General Purpose | 1/2 inch | Hydraulic | Push-pull | NPTF | 1/2 - 14 | Poppet |
