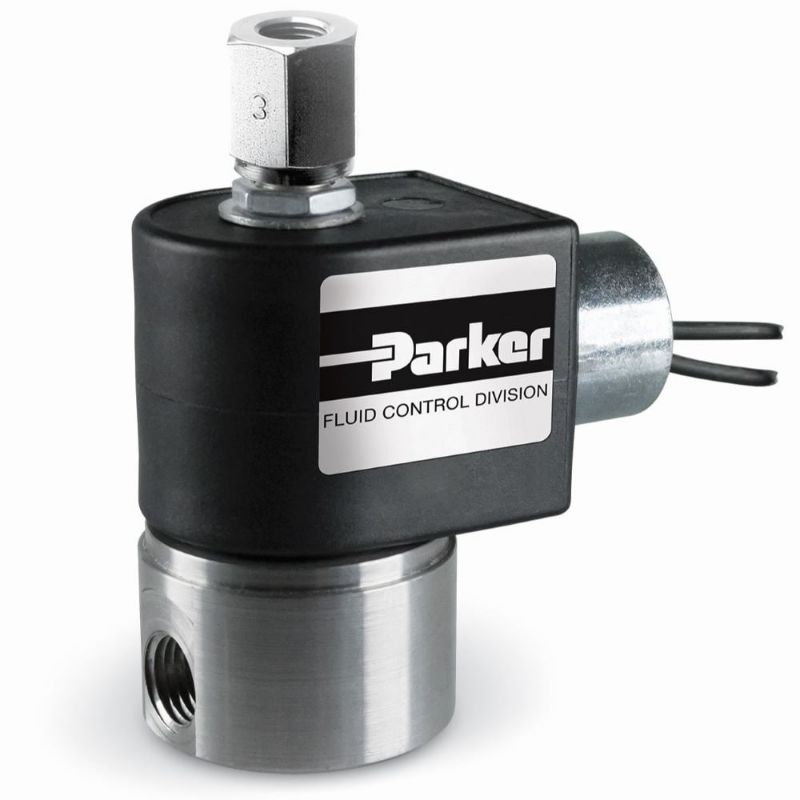

Parker 71335SN2ANJ1N0C111P3 - Parker 3-Way Multi-Purpose, 1/4" NPT General Purpose Solenoid Valves

Parker 3-Way Multi-Purpose, 1/4" NPT Solenoid Valves provide operating pressures up to 400 psi and flow factors up to 0.31 CV's. They offer stainless steel or brass bodies and various coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71335SN2ANJ1N0C111P3

$236.94

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Port Size	1/4 inch	Division	Fluid Control Division
Media	General Purpose for Air	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Valve Type	3-Way	Input Voltage	110/50-120/60
Seal Material	NBR	Actuation Type	Direct Acting
Orifice 2 Size	n/a	Number of Ports	3
Flow Coefficient 2	n/a	Coil Specifications Met	NEMA 4X
Minimum Fluid Temperature	0 °F	Minimum Pressure Differential	0 psi
Maximum Fluid Temperature	185 °F	Power Consumption	10 W (AC)
Exhaust Orifice Size	1/32 inch	Main Orifice Size	1/32 inch
Product Series	7000 Series	Additional Options	Exhaust Adapter Nut
Function	Multipurpose	Body Material	Stainless Steel 430 F
Main Flow Coefficient	0.024 Cv	Exhaust Flow Coefficient	0.024 Cv
Maximum Pressure Differential	400 psi (AC)	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	110/50-120/60	Seal Material	NBR
Power (Watts)	10 Watt (AC)	Orifice Main (inch)	1/32
Mechanical Option	Exhaust Adapter Nut	Body Material	430F Stainless
Flow Factor Main (Cv)	0.024	Maximum Pressure Differential (psi)	400 psi (AC)
