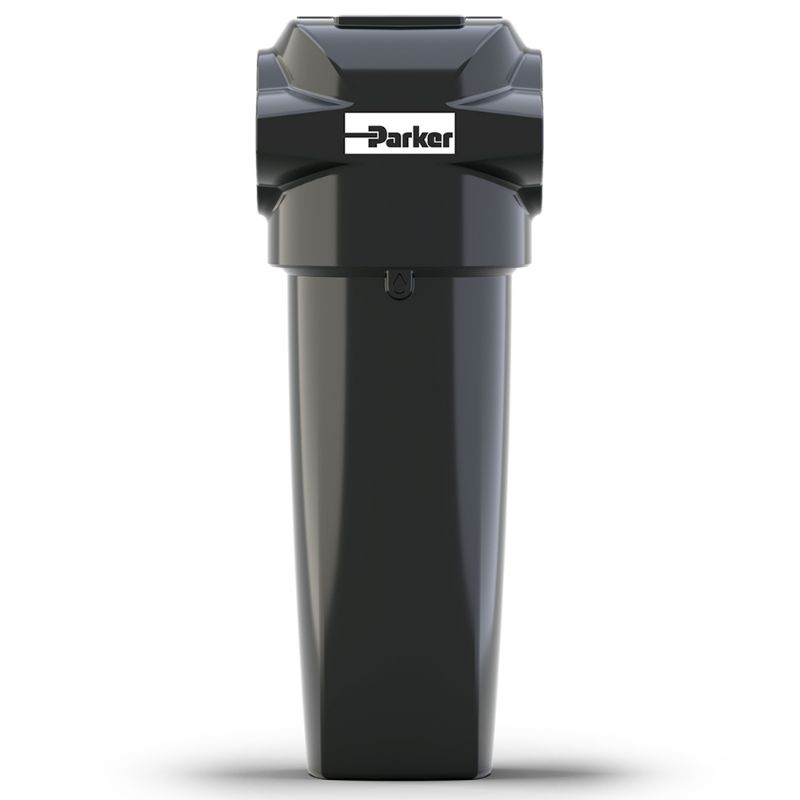

Parker WSPX025ENFX - OIL-X Grade WS Compressed Air Water Separator (For Pressures Up To 16 barg)

Die cast aluminium water separators for the efficient removal of bulk liquid contamination from a compressed air supply, providing flow rates up to 3600 m³/h @ 7 bar g.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. WSPX025ENFX

$552.40/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Gas Separation and Filtration Division EMEA
Operating Temperature	2 to 60 °C	Micron Rating	n/a
Operating Pressure	22 to 232 psig	Product Type	Compressed Air Filter
Specifications Met	Fully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II	Application	Compressed Air and Nitrogen Gas Applications
Pressure Differential	1.4 psi Initial Saturated, 100% Flow	Technology	Filtration
Depth	4.53 inch	Height	277.0 mm
Filter Type	Water Separator	Width	4.72 inch
Materials of Construction	Die Cast Aluminium	Division	Gas Separation and Filtration Division EMEA
Weight	2.66 kg	Brand	Parker
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Product Series	OIL-X Grade WS
Maximum Flow Rate	396 m³/h @ 7 barg (233 cfm @ 102 psig)	Connection Type	NPT
Drain Option	Automatic Float	Port Size	1 inch
Electrical Requirements	N/A
