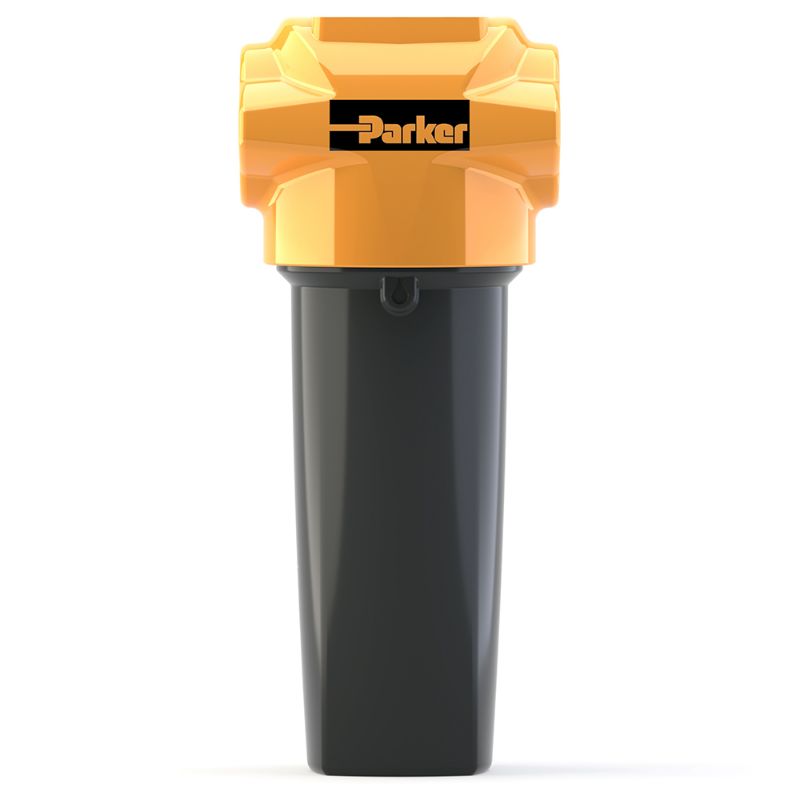

Parker AOPX010ANFX - OIL-X Compressed Air Filter (For Pressures up to 16 and 20 bar g)

High efficiency coalescing and dry particulate filters with very low pressure drop providing excellent energy savings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AOPX010ANFX

$401.76

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Technology	Filtration	Division	Gas Separation and Filtration Division EMEA
Division	Gas Separation and Filtration Division EMEA	Element Change Interval	12 Months
Weight	0.81 kg	Product Type	Compressed Air Filter
Specifications Met	Fully tested - In accordance with ISO12500-1 / ISO8573-2 for oil aerosol and ISO8573-4 for particulate.<br/> <br/>Filtration performance independently validated - by Lloyds Register. <br/> <br/>PED 2014/68/EU Fluid Group II.	Application	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Depth	65.0 mm	Drain	Automatic Float
Width	76.0 mm	Height	7.09 inch
Operating Temperature	2 to 65 °C	Materials of Construction	Die Cast Aluminium
Operating Pressure	1.5 to 16 barg	Product Series	OIL-X Grade AO
Compatible Element	P010AO	Residual Oil Content	0.5 mg/m³ / 0.5 ppm(w) <br/>@ 21°C (70°F)
Pressure Differential	123.0	Filter Efficiency Rating	99.925 %
Micron Rating	Down to 1 micron	Connection Type	NPT
Port Size	¼ inch	Maximum Flow Rate	36 m³/h @ 7 barg (21 cfm @ 102 psig)
Filter Type	General Purpose Coalescing
