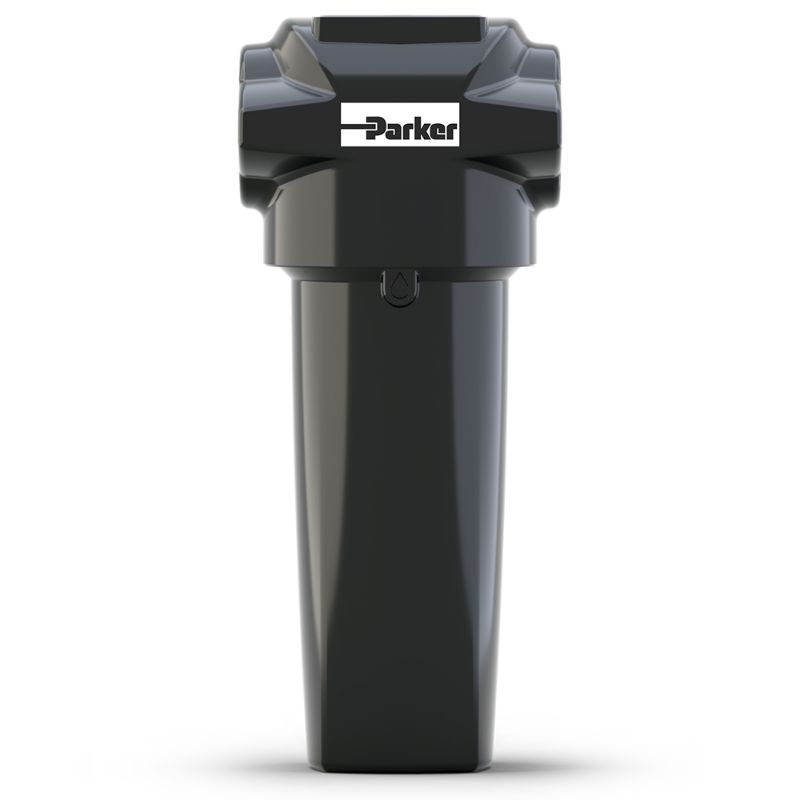

Parker WSPX010AGFX - OIL-X Grade WS Compressed Air Water Separator (For Pressures Up To 16 barg)

Die cast aluminium water separators for the efficient removal of bulk liquid contamination from a compressed air supply, providing flow rates up to 3600 m³/h @ 7 bar g.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. WSPX010AGFX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	1.78 lb	Micron Rating	n/a
Technology	Filtration	Depth	2.56 inch
Product Type	Compressed Air Filter	Operating Temperature	2 to 60 °C
Specifications Met	Fully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II	Division	Gas Separation and Filtration Division EMEA
Division	Gas Separation and Filtration Division EMEA	Height	7.09 inch
Pressure Differential	53.0 mbar Initial Saturated, 100% Flow	Operating Pressure	1.5 to 16 barg
Width	2.99 inch	Application	Compressed Air and Nitrogen Gas Applications
Product Series	OIL-X Grade WS	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Materials of Construction	Die Cast Aluminium	Filter Type	Water Separator
Brand	Parker	Connection Type	BSPP
Maximum Flow Rate	36 m³/h @ 7 barg (21 cfm @ 102 psig)	Drain Option	Automatic Float
Port Size	¼ inch	Electrical Requirements	N/A
