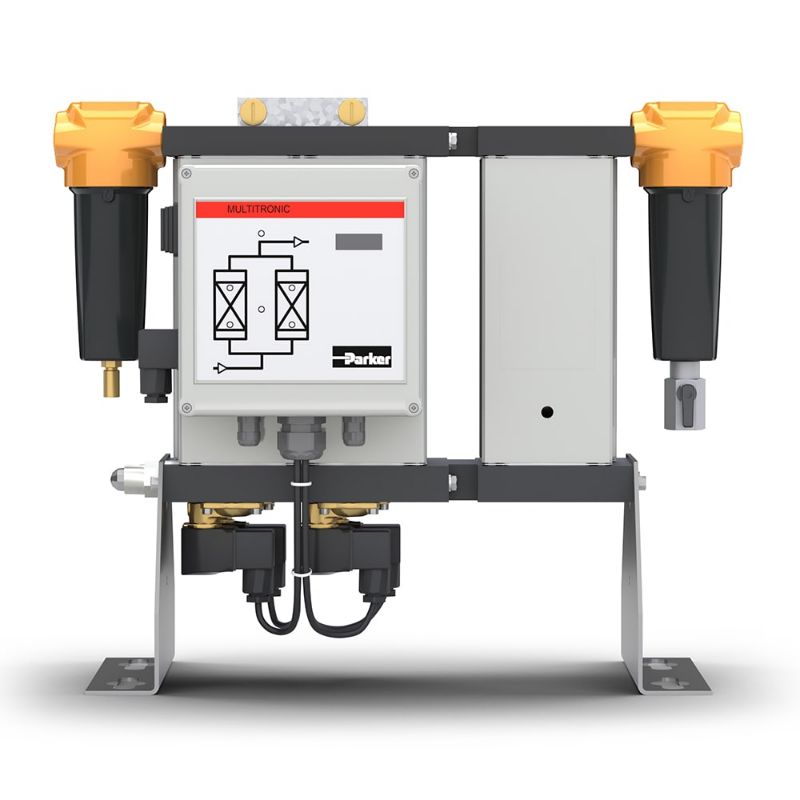

Parker K1/16DA3-G24DM - KA-MT 1-8 Series Compressed Air Adsorption Dryer With Activated Carbon Stage

Compact, heatless compressed air adsorption dryers with oil vapour removal for industrial requiring volume flows up to 86m³/h @ 7 barg and dew points of -40°C (-25°C and -70°C options available).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K1/16DA3-G24DM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Gas Separation and Filtration Division EMEA	Product Type	Compressed Air Dryer
Width	19 inch	ISO Grade	Standard: Class 2.2.1<br/> Options: Class 2.1.1 or Class 2.3.1
Operating Pressure	58 to 232 psig	Application	Compressed Air Applications
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Ambient Temperature	122.0
Depth	210.0 mm	Weight	15 kg
Operating Temperature	41 to 122 °F	Product Style	Heatless with Activated Carbon Stage
Connection Type	BSPP	Division	Gas Separation and Filtration Division EMEA
Technology	Filtration	Product Series	KA-MT 1-8
Pressure Dew Point	Options: -70°C (-100°F) or -20°C (-4°F)	Height	403.0 mm
Ingress Protection Rating	IP65 Indoor and Frost Free Installation Only	Noise Level	65 to 86 dBA
Specifications Met	PED 2014/68/EU Fluid Group II	Brand	Parker
Flow Rate	8 m³/h @7 barg (5 cfm @102 psig)	Optional Accessories	None
Electrical Requirements	24V DC	Port Size	¼ inch
