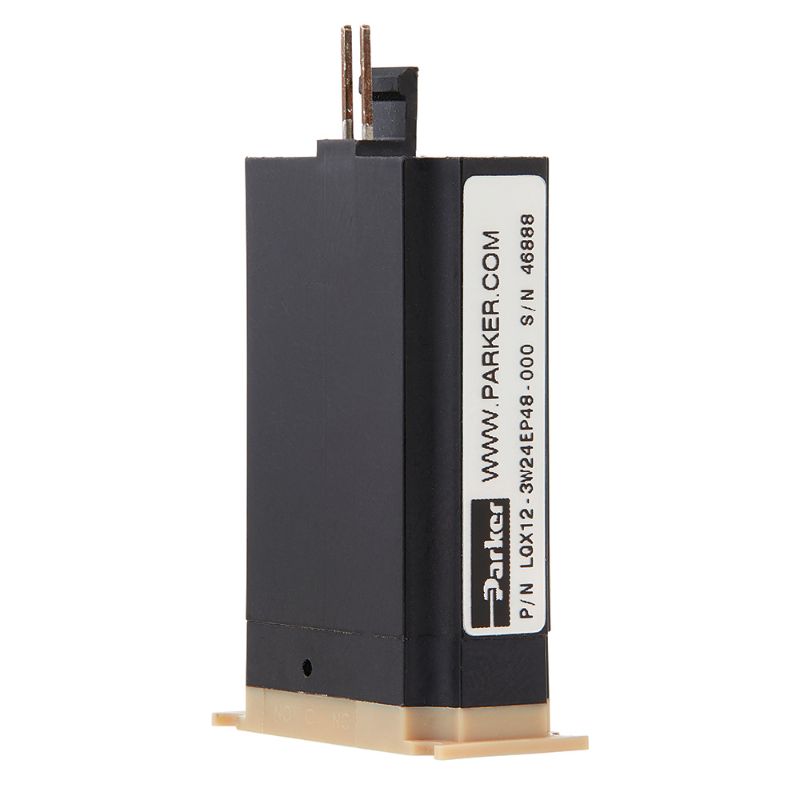

Parker LQX12-2W12EPFS-000 - LQX12 - 12 mm Miniature Diaphragm Isolation Valve

Parker's LQX12 family of 12 mm diaphragm isolation valves offer metal free wetted paths with EPDM and FFKM versions to meet the needs of your applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. LQX12-2W12EPFS-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Cycles per Lifetime	10 Million	Electrical Connection	2.54 mm pins
Maximum Operating Temperature	122 °F	Height	39.88 mm
Control Method	Current or Voltage	Flow Rate	Up to 650 sccm
Input Voltage	12 VDC	Length	1.16 inch
Configuration	n/a	Out of Stock Lead Time	40
Body Material	PEEK	Actuation Type	Solenoid
Mounting Type	Manifold	Vacuum to Pressure Range	Vac to 40 psig
Power Consumption	2.0 Watts Maximum	Connection Size	4 x #2-56 UNC-2B
Division	Precision Fluidics Division	Seal Material	EPDM
Connection Type	Mounting Screw	Shipping Weight	0.35
Function	2-Way Normally Closed (NC)	Maximum Operating Pressure	40 psi
Industry Application	Solvent management for Liquid Chromatography, Highly aggressive media dispensing and control	Orifice Size	0.040 inch
Maximum Flow Rate	650 sccm	Weight	76.5 g
Leak Rate	Bubble Tight	Width	0.47 inch
For Fluid Type	Liquids	Max Order Quantity	9
Operation Type	Electronic	Response Time	< 20 ms (2-Way), < 12 ms (3-Way)
Minimum Operating Temperature	0 °C	Valve Type	Diaphragm Rocker Isolation Valve
Standard Lead Time	20	Voltage (VDC)	12
Electrical Connection	2.54mm Pitch Male Pins	Mounting Style	Face Seal
Valve Configuration Type	2-Way Normally Closed	Chemical Resistance Required	Moderate - PEEK Body, EPDM Diaphragm
