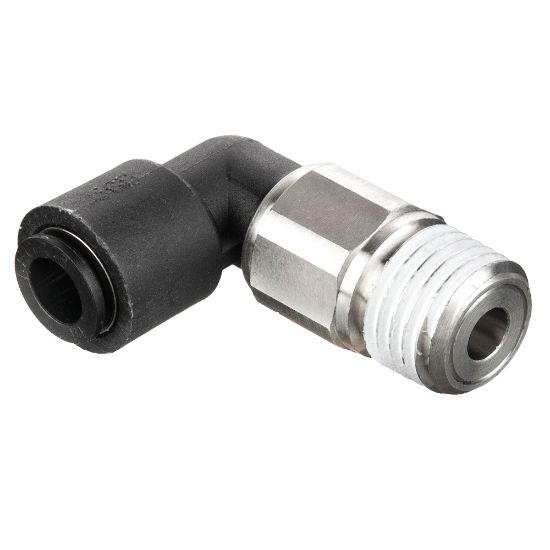

Parker W369PLPO-10M-6R - Oscillating Elbows

Parker's push-to-connect oscillating elbows are designed for optimum reliability and durability preventing tube wear due to excessive flexing of the tubing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W369PLPO-10M-6R

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	ISO 14743, DI: 97/23/EC, DI: 2002/95/EC, DI: 1907/2006	Maximum Operating Pressure	290
Division	Fluid System Connectors Division	Fitting Material	Glass Reinforced Nylon 6.6
Application	Air, Cutting Fluids, Inert Gases	Seal Material	Nitrile
Minimum Operating Temperature	-4	Product Style	Tube to Pipe
Maximum Operating Temperature	175	Gripping Ring Material	Stainless Steel
Tube Material	Nylon Semi-Rigid, Polyurethane 95 Durometer, Nylon, Fluoropolymer	Connection 1 Size	Push-to-connect
Body Material	Glass Reinforced Nylon 6.6	Shape	Elbow 90°
Connection 2 Type	BSPT	Connection 2 Thread Size	3/8"
Connection 1 Tube Outside Diameter	10 mm (O.D.)

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
