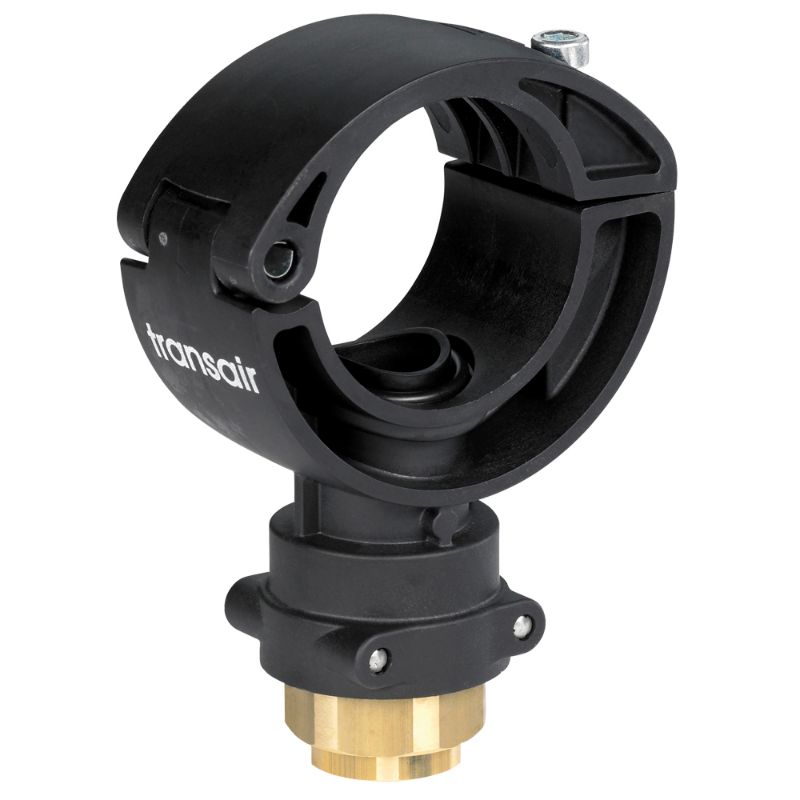

Parker RA65 63 08 - Transair® Drop Brackets for Aluminum Pipe

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RA65 63 08

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Transair	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Minimum Operating Temperature	-4 °F
Industry	General Industrial	Technology	Fluid & Gas Handling
Division	Low Pressure Connectors Europe Division	Application	Inert Gases
Assembly Time	0.05 Hours	Quantity per Box	5
Specifications Met	EN 573.3	Maximum Operating Temperature	185 °F
For Fluid Type	Air	Connection 1 Type	Pipe
Connection 2 Type	Female	Body Material	Technical Polymer
Configuration	Pipe to Port	Connection 1 Size	63 mm
Product Style	Quick Assembly Bracket	Vacuum Pressure Rating	1.0 mbar 99,9% (absolute pressure)
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) for all diameters 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) for all diameters For Canada, Please refer to https://www.par	Assembly	Drop
Silicone Free	Yes	Shape	Saddle
Weight	0,21 kg	Connection 2 Size	G 1
Connection 2 Size	1"	Body Material	Technical Polymer
Connection 1 Size	2-1/2" (63 mm)	Connection 2 Type	Female Threaded BSP Simple Reducing Bracket
