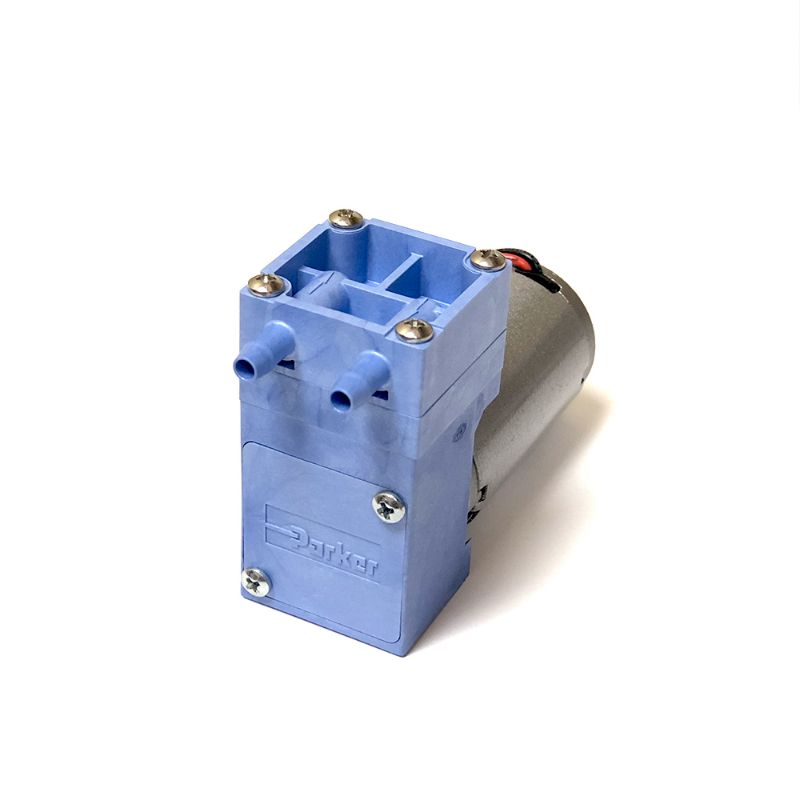

Parker W309-61 - LTC Miniature Diaphragm Pump (Liquid)

Parker’s LTC Miniature Diaphragm pump is a compact versatile pump with the option of a brush or brushless DC motor drives that can be configured for specific requirements and handle a wide variety of liquid media and range of pressures.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W309-61

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operational Life	3000 Hours	Noise Level	45 dBA
Body Material	Vectra A130 LCP	Product Type	Diaphragm Pump
Height	57.2 mm	Vacuum Pressure Rating	-432 mm-Hg
Flow Rate	up to 0.7 L/min	Division	Precision Fluidics Division
Industry Application	Photo Processing Printers	Operating Pressure	2068 mbar
Weight	198 g	Diaphragm Material	EPDM
Operating Temperature	5 to 50 °C	Maximum Continuous Vacuum Pressure	-8.4 psi
Width	30 mm	Length	77.5 mm
Motor Type	Iron Core Brush DC	Maximum Continuous Pressure	2068 mbar
For Fluid Type	Liquids	Pump Size	Single Head
Operational Life	3,000 Hours	Connection Style	Barb 1/8" ID or 4 mm ID Tubing
Pump Type	Pressure and/or Vacuum	Free Flow Rate	Up to 0.7 L/min
Motor Option	Iron Core Brush DC
