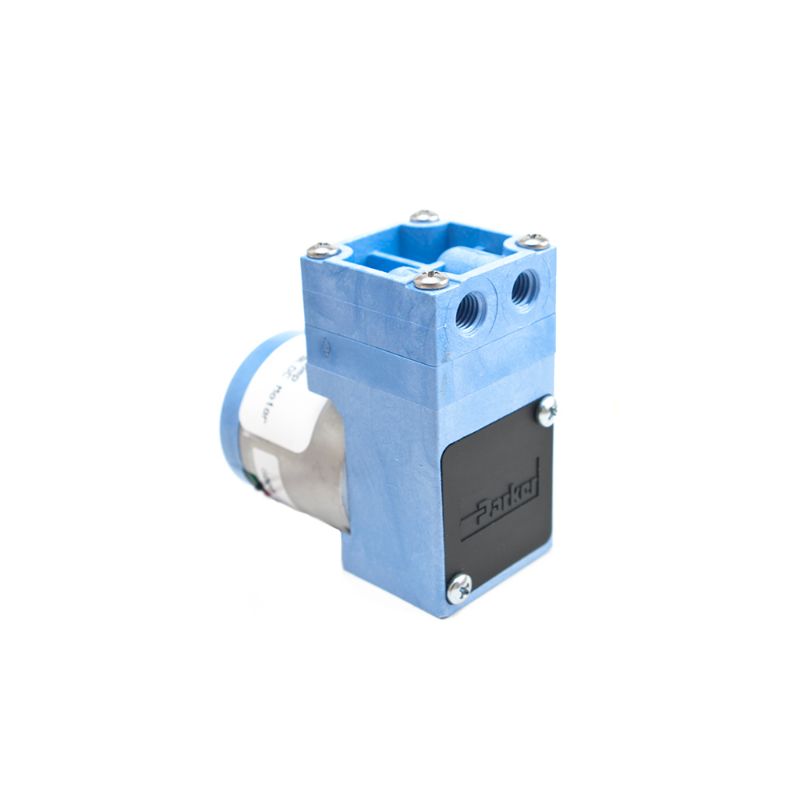

Parker W312-11 - LTC Miniature Diaphragm Pump (Liquid)

Parker’s LTC Miniature Diaphragm pump is a compact versatile pump with the option of a brush or brushless DC motor drives that can be configured for specific requirements and handle a wide variety of liquid media and range of pressures.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W312-11

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Motor Type	Compact Brushless DC	Width	1.18 inch
Operating Temperature	5 to 50 °C	Height	2.25 inch
Operational Life	10000 Hours	Product Type	Diaphragm Pump
Length	2.16 inch	Operating Pressure	30 psi
Division	Precision Fluidics Division	For Fluid Type	Gas
Flow Rate	up to 0.7 L/min	Maximum Continuous Pressure	30 psi
Body Material	Vectra A130 LCP	Diaphragm Material	EPDM
Noise Level	45 dBA	Weight	142 g
Industry Application	Urinalysis	Maximum Continuous Vacuum Pressure	-8.4 psi
Vacuum Pressure Rating	-432 mm-Hg	Pump Type	Pressure and/or Vacuum
Free Flow Rate	Up to 0.7 L/min	Operational Life	10,000 Hours
Motor Option	Compact Brushless DC	Connection Style	Threaded 1/4-28 UNF
Pump Size	Single Head
