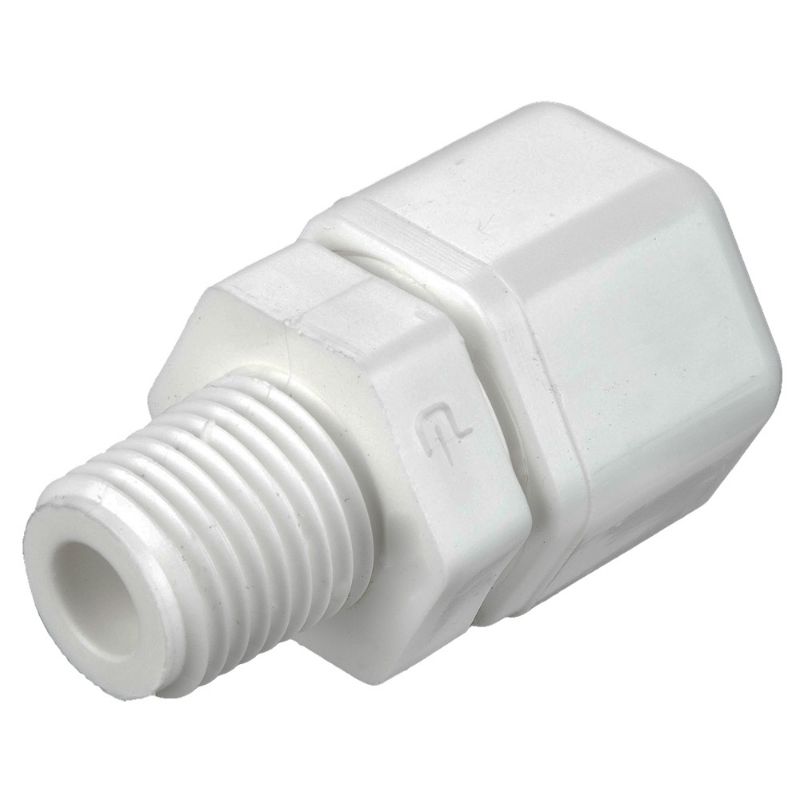

Parker W10MC12 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W10MC12

$4.17

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-18 °C
Specifications Met	FDA	Maximum Operating Temperature	100 °C
For Fluid Type	Water	Seal Material	Nitrile (O-Ring)
Division	Fluid System Connectors Division	Maximum Operating Pressure	50 psi
Application	Filtration	Tube Material	Thermoplastic
Gripping Ring Material	Stainless Steel AISI 302	Body Material	Polypropylene
Connection 1 Tube Outside Diameter	5/8" (O.D.)	Body Material	White Polypropylene
Connection 2 Type	NPTF	Product Style	Connector
Connection 2 Thread Size	3/4"	Connection 1 Type	Compression
Configuration	Tube to Pipe

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
