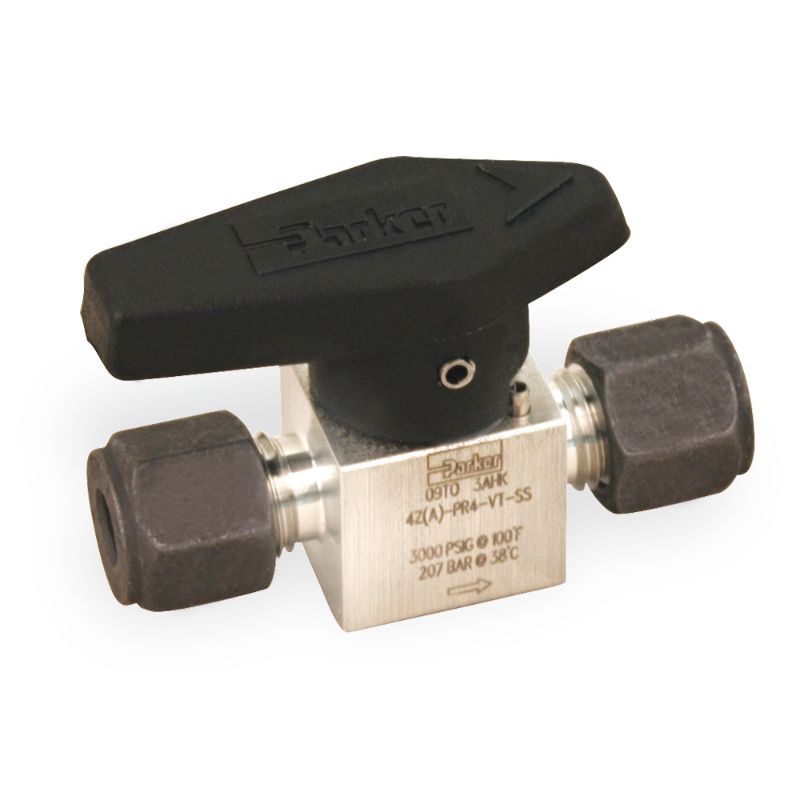

Parker 4F-PR4-VT-B - Ball Valve, Plug Valve - PR Series

Parker's PR Series Plug Valves provide positive leak tight shut-off, high flow capacity, and quick quarter-turn operation in a compact, barstock body. This plug valve provides the user the ability to throttle during manual actuation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4F-PR4-VT-B

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Instrumentation Products Division
Connection 2 Size	1/4"	Maximum Operating Pressure (psi)	3,000
Back-up Ring Material	PTFE	Seal Material	Fluorocarbon Rubber
Flow Capacity (Cv)	1.24	Maximum Operating Pressure (bar)	207
Connection 1 Size	1/4"	Connection 2 Style	NPT F
Connection 1 Style	NPT F	Body Material	BRASS

Product resources

Compliance, Certifications & Safety

TUV TA Luft - HiPro En (PDF)

Literature and Reference Materials
