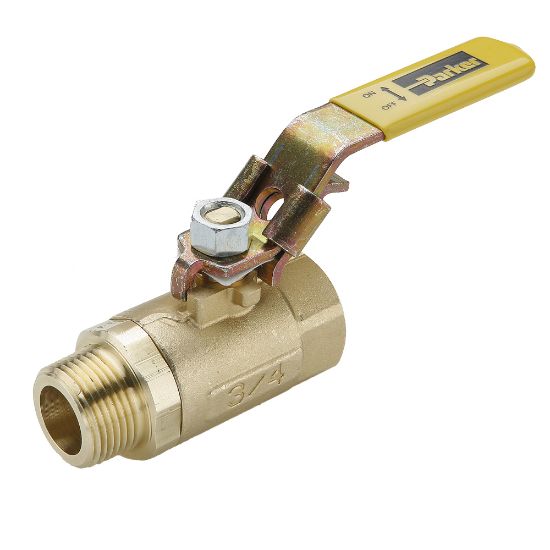

Parker VVP501P-8* - Transair® Valves for Aluminum Pipe

Transair® Valves are designed for quick and easy integration into a Transair compressed air piping system. Placing valves at strategic points allows for easy system isolation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VVP501P-8*

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Direction	Bidirectional	Configuration	Port to Port
Options	Lockable	Weight	0.760
Seat Material	PTFE	Maximum Operating Temperature	350
Orifice Size	16.5	Industry	General Industrial
Operation Type	Manual	Maximum Operating Pressure	17.2
Product Type	Flow Control Valve	Mounting Type	Screw
Body Material	Brass	Function	2-Way
Actuation Type	Manual	Response Time	n/a
Specifications Met	N/A	Division	Low Pressure Connectors Europe Division
Technology	Fluid & Gas Handling	Vacuum Pressure Rating	1
Connection 1 Size	1/2	Minimum Operating Temperature	0
Quantity per Box	8	Application	In Plant Pneumatic
Assembly Time	0.17	Product Style	Ball Valve
Division	Fluid System Connectors Division	Connection 2 Size	1/2
Seal Material	PTFE	Connection 2 Type	Female NPT
For Fluid Type	Compressed Air	Brand	Transair
Connection 1 Type	Male NPT	Pipe O.D. (mm)	N/A
Vented	No	Pipe O.D. (inch)	N/A
Style	Male & Female NPT Threaded Ball Valve	Silicone Free	Yes
Connection Thread Size (inch)	1/2
