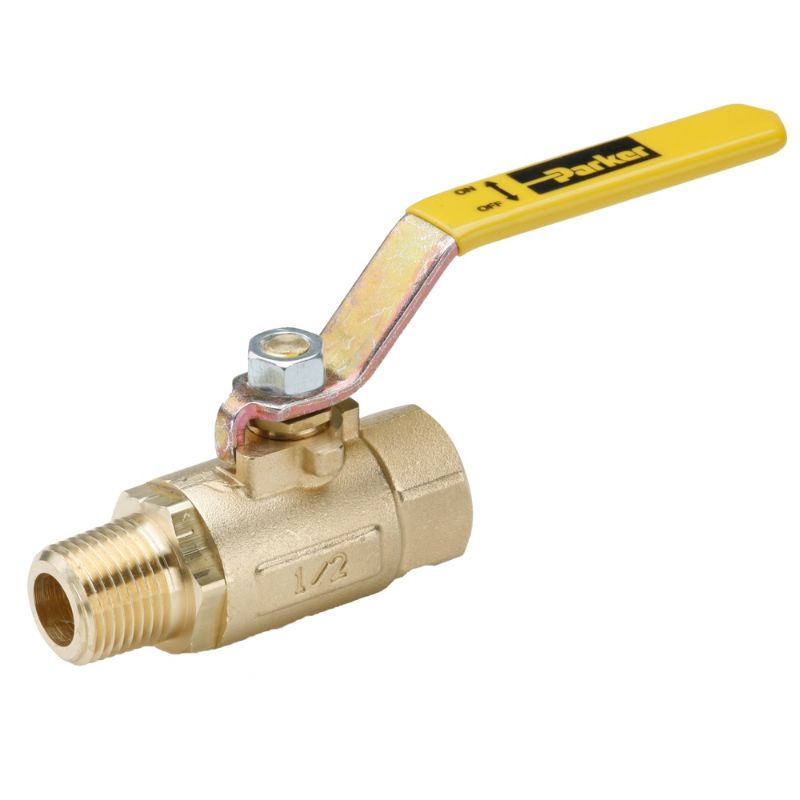

Parker VV501P-4 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VV501P-4

$48.80/each

Products specifications

Attribute name	Attribute value
UOM	EA	Handle Type	Lever
Function	2-Way, Normally Closed, Normally Open	Connection Size	1/4
Maximum Operating Pressure	17	Maximum Operating Temperature	350
Configuration	Male-Female Pipe Ends	Division	Fluid System Connectors Division
Seat Material	PTFE	Connection Type	NPT, Straight Thread Solder
Operation Type	n/a	Maximum Flow Rate	6.3
Body Material	Brass	Mounting Type	Panel, In-Line
Ball Material	Chrome Plated Brass	Seal Material	PTFE
Orifice Size	.34	Actuation Type	Manual
Product Type	Brass Series 501 Ball Valve	Shape	In-line
Minimum Operating Temperature	0	Locking Mechanism	Non-Locking
Handle	Steel Lever	Shape	In Line
Connection 2 Thread Size (inch)	1/4	Style	Female/Male
Vented	Yes	Maximum Working Pressure (psi)	250
Connection 1 Solder O.D. (inch)	na	Connection 1 Thread Size (inch)	1/4
Connection 1 Thread Style	Male Pipe	Connection 2 Solder O.D. (inch)	na
Connection 2 Thread Style	Female Pipe
