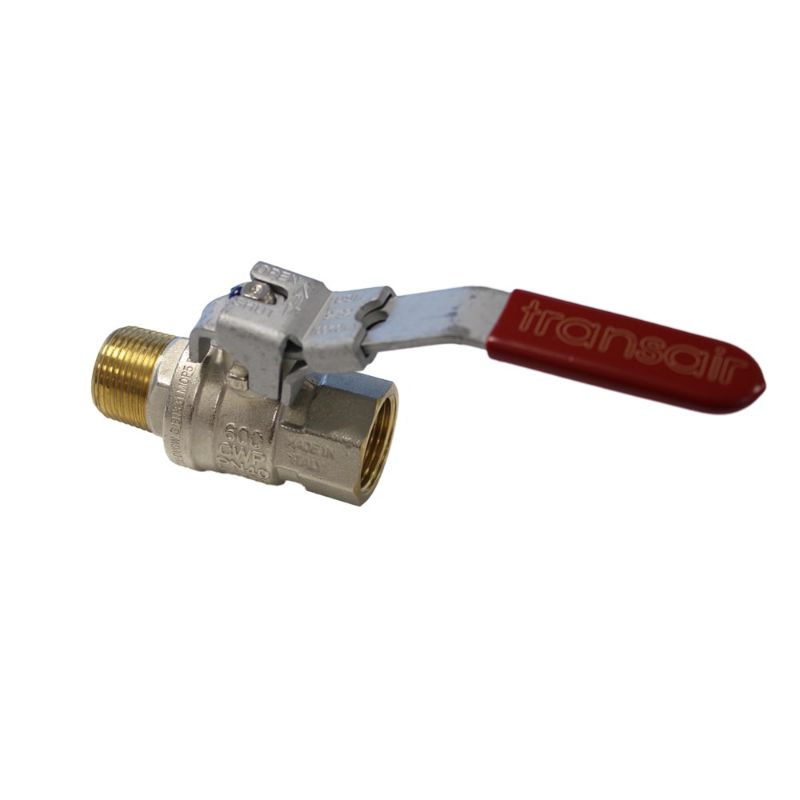

Parker VR04 00 20 - Transair® Valves for Aluminum Pipe

Transair® Valves are designed for quick and easy integration into a Transair compressed air piping system. Placing valves at strategic points allows for easy system isolation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VR04 00 20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seat Material	PTFE	Seal Material	NBR
Quantity per Box	1	For Fluid Type	Industrial Gases
Proof Pressure	n/a	Orifice Size	25 mm
Division	Fluid System Connectors Division	Connection 2 Type	Female BSPP
Pressure Rating	n/a	Options	Lockable
Configuration	Port to Port	Cavity Size	n/a
Product Type	Flow Control Valve	Minimum Operating Temperature	-4 °F
Connection 1 Size	R2-1/2 inch	Pressure Differential	n/a
Specifications Met	ISO 9001	Flow Direction	Bidirectional
Body Material	Technical Polymer	Maximum Operating Temperature	85 °C
Industry	General Industrial	Weight	7.936 lb
Mounting Type	In-line/Pipe	Flow Coefficient	n/a
Brand	Parker	Number of Ports	n/a
Operation Type	Manual	Vacuum Pressure Rating	0.03 inch-Hg
Connection 1 Type	Male BSPT	Actuation Type	Manual
Power Consumption	n/a	Connection 2 Size	G2-1/2 inch
Assembly Time	0.1 Hours	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Response Time	n/a	Function	2-Way
Division	Fluid System Connectors Division	Maximum Flow Rate	n/a
Burst Pressure	n/a	Application	In Plant Pneumatic
Model Number	n/a	Technology	Pneumatics
Product Style	Ball Valve	Pipe O.D. (mm)	N/A
Style	Ball Valve	Vented	No
Pipe O.D. (inch)	N/A	Silicone Free	Yes
Connection Thread Size (inch)	2-1/2
