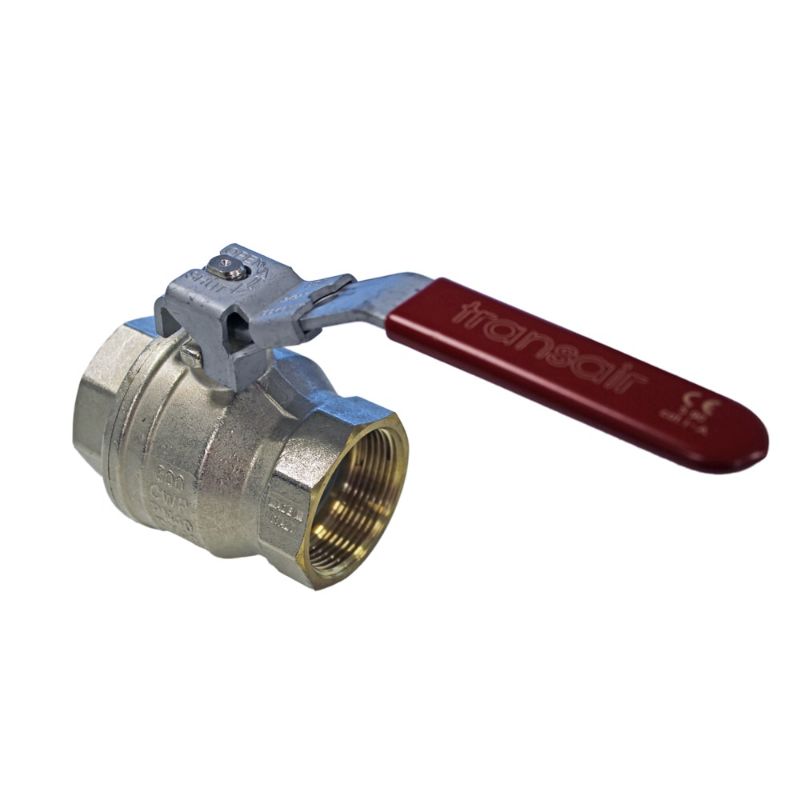

Parker VR03 00 20 - Transair® Valves for Aluminum Pipe

Transair® Valves are designed for quick and easy integration into a Transair compressed air piping system. Placing valves at strategic points allows for easy system isolation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VR03 00 20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	232 psi	Connection 1 Type	Female BSPP
Industry	General Industrial	Flow Coefficient	n/a
Mounting Type	In-line/Pipe	Product Type	Flow Control Valve
Operation Type	Manual	Vacuum Pressure Rating	0.03 inch-Hg
Number of Ports	n/a	Weight	2.979 kg
Pressure Rating	n/a	Actuation Type	Manual
Body Material	Treated Brass	Response Time	n/a
Connection 2 Size	G2-1/2 inch	Function	2-Way
Assembly Time	0.1 Hours	Power Consumption	n/a
Product Style	Ball Valve	Burst Pressure	n/a
Division	Fluid System Connectors Division	Maximum Flow Rate	n/a
Technology	Pneumatics	Model Number	n/a
Application	In Plant Pneumatic	For Fluid Type	Inert Gases
Seal Material	NBR	Proof Pressure	n/a
Quantity per Box	1	Minimum Operating Temperature	-20 °C
Orifice Size	25 mm	Connection 1 Size	G2-1/2 inch
Brand	Transair	Connection 2 Type	Female BSPP
Cavity Size	n/a	Configuration	Port to Port
Options	Lockable	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	185 °F	Flow Direction	Bidirectional
Seat Material	PTFE	Pressure Differential	n/a
Specifications Met	EN 573.3	Pipe O.D. (inch)	N/A
Vented	No	Connection Thread Size (inch)	2-1/2
Silicone Free	Yes	Style	Ball Valve
Pipe O.D. (mm)	N/A
