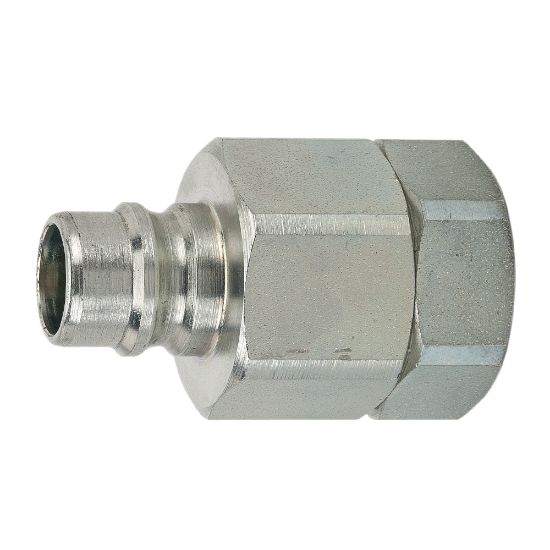

Parker VPHN8-8F - Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series

Parker's general purpose connect under pressure quick couplers and nipples are versatile for use across a spectrum of applications where fluid lines require fast and easy connection and disconnection while under residual pressure

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VPHN8-8F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Plating Type	Zinc with clear trivalent chromate	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Body Material	Steel
Product Type	Manual Connect	Application	General Purpose
Maximum Operating Pressure	4000 psi	Valve Type	Poppet
Dimensional Weight	0.27302158273381294 lb	Minimum Operating Temperature	-40 °F
Hex Size	1.19 inch	Division	Quick Coupling Division
Connection Type	Female NPTF	Body Size (inch)	1/2
Connection Thread Size (inch)	1/2 - 14	Coupling Half	Male Nipple
