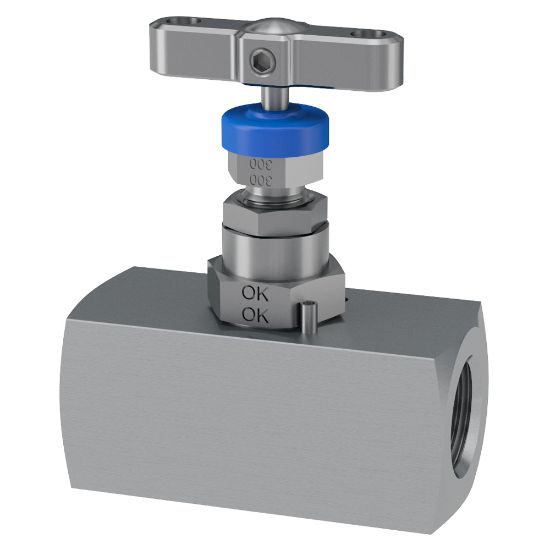

Parker HRPV46MO4FFBM - Hand valves, Rising Plug – HRPV Series

Parker's bar stock rising plug hand valves with soft seat tip and a straight through flow path, specifically designed for isolation and regulation of contaminated media. Pressure rating up to 10,000 psi (689 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HRPV46MO4FFBM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Pressure	10000 PSI / 689 BAR	Flow Coefficient	1.8
Seat Material	PEEK	Packing Material	PTFE
Division	Instrumentation Products Division	For Fluid Type	General Gaseous and Liquid Media
Operating Temperature	From -54°C to +204°C, From -65°F to +399°F	Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection Options: BSPT, BSPP<br/>Operator Options: Anti-tamper, Handwheel, T Bar Locking
Orifice Size	6.4	Flow Direction	Straight
Options	n/a	Meets Certifications	N/A
Inlet Connection Size	1/4 Inch	Mounting Option	Base Mount
Outlet Connection Size	1/4 Inch	Connection Type	NPT Female
Body Material	6Mo
