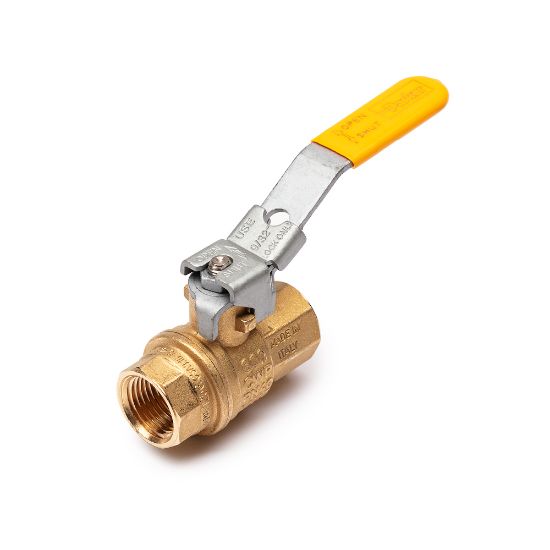

Parker VP520P-20 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VP520P-20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Brass Series 520 Ball Valve	Division	Fluid System Connectors Division
Ball Material	Chrome Plated Brass	Operation Type	n/a
Orifice Size	1.18	Configuration	Female-Female NPT Ports
Handle Type	Lever	Actuation Type	Manual
Mounting Type	Panel, In-Line	Body Material	Brass
Maximum Flow Rate	n/a	Maximum Operating Pressure	41
Minimum Operating Temperature	-40	Maximum Operating Temperature	350
Seat Material	PTFE	Function	2-Way, Normally Closed, Normally Open
Seal Material	PTFE	Connection Type	NPT, Straight Thread Solder
Connection Size	1 1/4	Shape	In-Line
Connection 1 Thread Size (inch)	1 1/4	Connection 2 Thread Size (inch)	1 1/4
Vented	No	Style	Female to Female (Standard Port)
Shape	In Line	Handle	Steel Lever
Connection 1 Thread Style	Female Pipe	Connection 1 Solder O.D. (inch)	na
Maximum Working Pressure (psi)	600	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Padlock	Connection 2 Thread Style	Female Pipe
