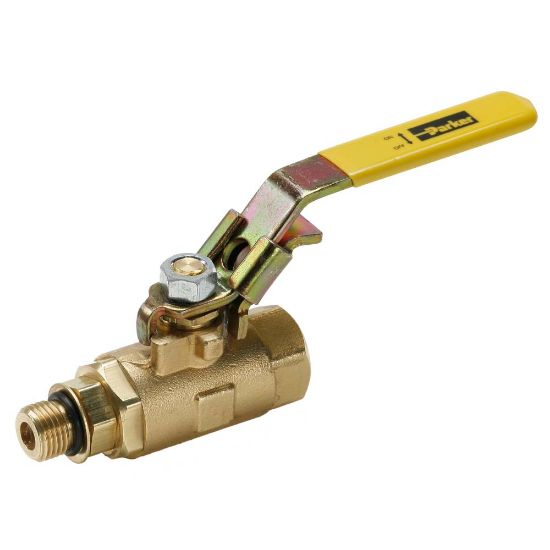

Parker VP510P-6 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VP510P-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	41	Seal Material	PTFE
Seat Material	PTFE	Function	2-Way, Normally Closed, Normally Open
Connection Size	3/8	Product Type	Brass Series 510 Ball Valve
Connection Type	NPT, Straight Thread Solder	Orifice Size	.28
Shape	In-Line	Maximum Operating Temperature	350
Configuration	Male-Female STO SAE J1926	Minimum Operating Temperature	0
Division	Fluid System Connectors Division	Maximum Flow Rate	2.1
Operation Type	n/a	Ball Material	Chrome Plated Brass
Handle Type	Lever	Mounting Type	Panel, In-Line
Body Material	Brass	Actuation Type	Manual
Connection 1 Thread Style	Female Straight Thread	Maximum Working Pressure (psi)	600
Connection 2 Solder O.D. (inch)	na	Connection 2 Thread Style	Male Straight Thread
Style	Female Straight Thread to Male Straight Thread	Connection 1 Thread Size (inch)	9/16-18
Locking Mechanism	Padlock	Vented	No
Handle	Steel Lever	Connection 2 Thread Size (inch)	9/16-18
Shape	In Line	Connection 1 Solder O.D. (inch)	na

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
