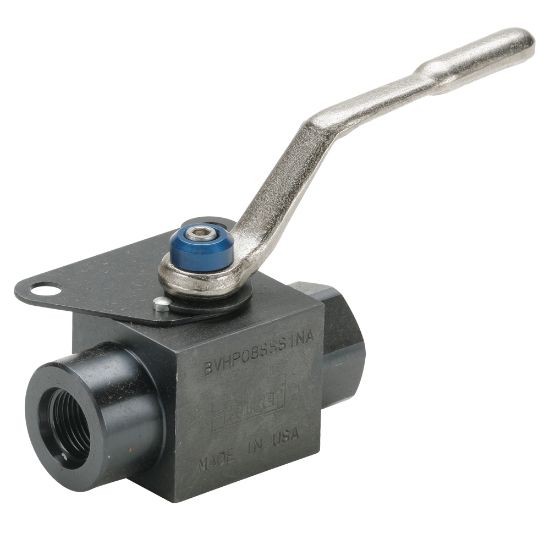

Parker VP506HP-4 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VP506HP-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Ball Valve	Mounting Type	Panel
Ball Material	Steel	Maximum Operating Temperature	210
Seal Material	PTFE	Shape	In-Line
Minimum Operating Temperature	-10	Maximum Flow Rate	n/a
Division	Fluid System Connectors Division	Connection Type	NPT, Straight Thread, SAE J1926-1
Function	Ball Valve	Operation Type	n/a
Handle Type	Lever	Configuration	In-line
Maximum Operating Pressure	413	Actuation Type	Manual
Orifice Size	n/a	Body Material	Carbon Steel
Connection Size	1/4	Seat Material	Delrin Molybdenum Disulphide
Specifications Met	N/A	Locking Mechanism	Padlock
Connection 2 Thread Size (inch)	7/16-20 UNF	Shape	In Line
Handle	Steel Lever	Connection 1 Thread Size (inch)	7/16-20 UNF
Style	Straight Thread Ends	Maximum Working Pressure (psi)	6000
Connection 1 Thread Style	SAE J1926-1	Connection 2 Thread Style	SAE J1926-1
