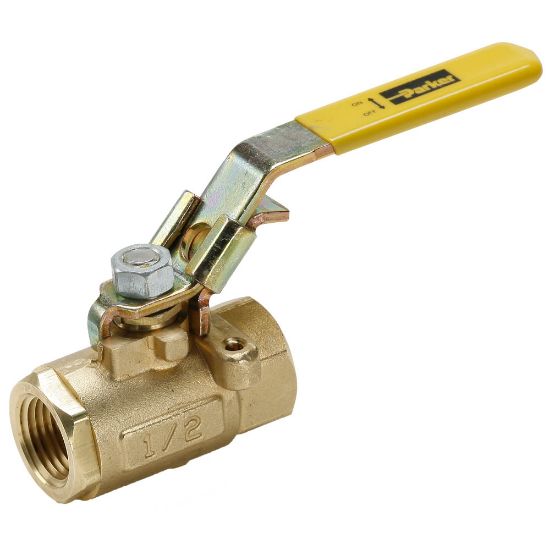

Parker VP502P-8 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VP502P-8

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Shape	In-Line	Maximum Operating Pressure	41
Connection Size	1/2	Seat Material	PTFE
Maximum Operating Temperature	350	Orifice Size	.50
Operation Type	n/a	Ball Material	Chrome Plated Brass
Configuration	Female-Female PTF Ports	Maximum Flow Rate	12
Connection Type	NPT, Straight Thread Solder	Mounting Type	Panel, In-Line
Body Material	Brass	Actuation Type	Manual
Minimum Operating Temperature	0	Division	Fluid System Connectors Division
Seal Material	PTFE	Function	2-Way, Normally Closed, Normally Open
Product Type	Brass Series 502 Ball Valve	Handle Type	Lever
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Locking Mechanism	Padlock	Connection 2 Thread Size (inch)	1/2
Maximum Working Pressure (psi)	600	Handle	Steel Lever
Vented	No	Shape	Panel mount
Connection 1 Solder O.D. (inch)	na	Connection 1 Thread Size (inch)	1/2
Connection 2 Solder O.D. (inch)	na	Connection 1 Thread Style	Female Pipe
