*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

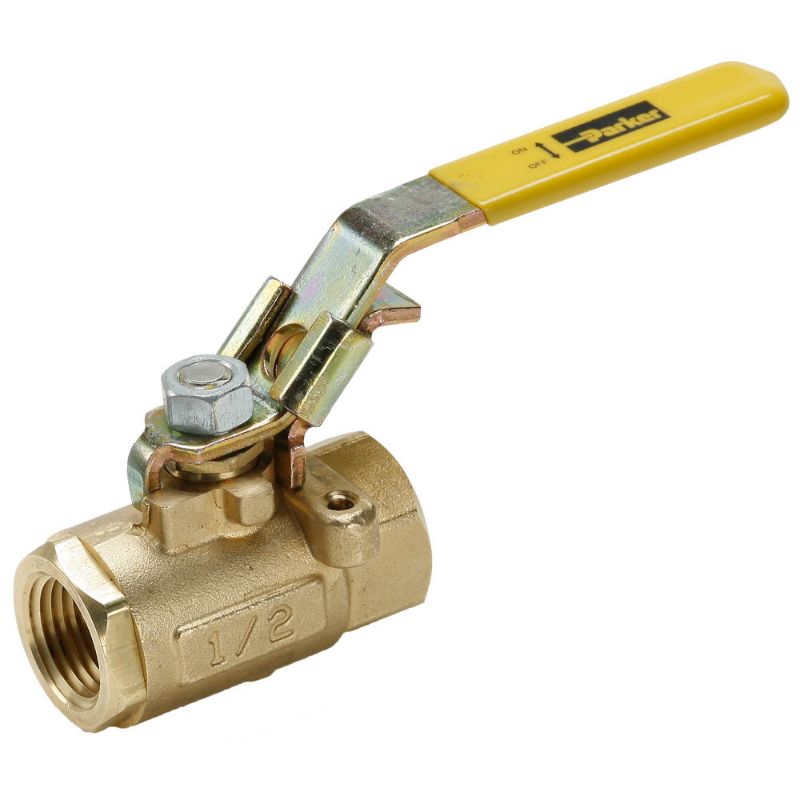

Parker VP502P-6 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VP502P-6

$53.59

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Brass Series 502 Ball Valve
Handle Type	Lever	Minimum Operating Temperature	0
Body Material	Brass	Division	Fluid System Connectors Division
Orifice Size	.38	Actuation Type	Manual
Mounting Type	Panel, In-Line	Seat Material	PTFE
Maximum Operating Pressure	41	Seal Material	PTFE
Connection Size	3/8	Function	2-Way, Normally Closed, Normally Open
Maximum Flow Rate	5.8	Connection Type	NPT, Straight Thread Solder
Configuration	Female-Female PTF Ports	Shape	In-Line
Maximum Operating Temperature	350	Operation Type	n/a
Ball Material	Chrome Plated Brass	Connection 1 Thread Style	Female Pipe
Connection 1 Solder O.D. (inch)	na	Connection 2 Thread Size (inch)	3/8
Connection 1 Thread Size (inch)	3/8	Connection 2 Solder O.D. (inch)	na
Maximum Working Pressure (psi)	600	Shape	Panel mount
Style	Female to Female	Locking Mechanism	Padlock
Connection 2 Thread Style	Female Pipe	Vented	No
Handle	Steel Lever

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
