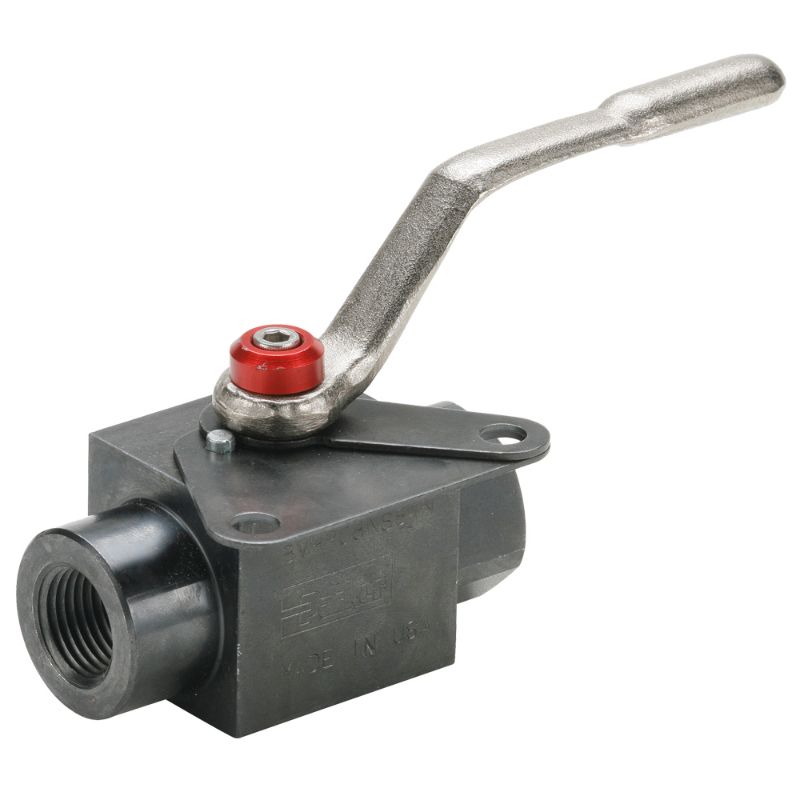

Parker VP500HP-12 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VP500HP-12

$275.62

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-10
Mounting Type	Panel	Shape	In-Line
Function	Ball Valve	Operation Type	n/a
Actuation Type	Manual	Seat Material	Delrin Molybdenum Disulphide
Maximum Operating Pressure	413	Orifice Size	n/a
Division	Fluid System Connectors Division	Specifications Met	N/A
Connection Type	NPT, Straight Thread, SAE J1926-1	Body Material	Carbon Steel
Maximum Flow Rate	n/a	Connection Size	3/4
Seal Material	PTFE	Ball Material	Steel
Maximum Operating Temperature	210	Product Type	Ball Valve
Configuration	In-line	Handle Type	Lever
Connection 2 Thread Size (inch)	3/4	Connection 2 Thread Style	Female Pipe
Locking Mechanism	Padlock	Shape	In Line
Handle	Steel Lever	Maximum Working Pressure (psi)	6000
Connection 1 Thread Style	Female Pipe	Style	Female Pipe Ends
Connection 1 Thread Size (inch)	3/4

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
