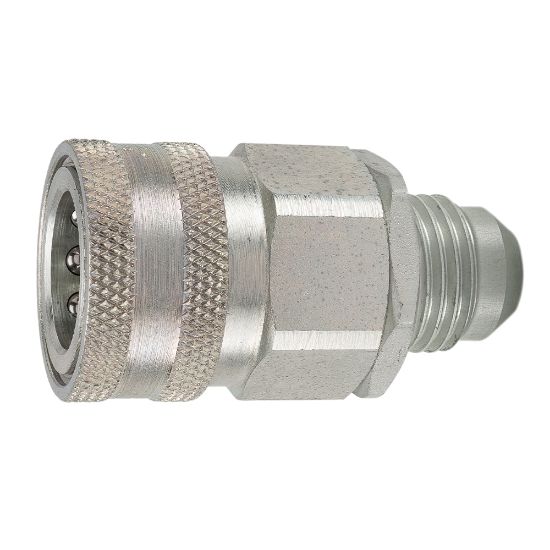

Parker VHC8-8EM - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VHC8-8EM

$59.47/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Valve Type	Poppet	Division	Quick Coupling Division
Hex Size	1.19 inch	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Product Type	Manual Connect
Application	Hydraulic, General Purpose	Minimum Operating Temperature	-40 °F
Body Material	Steel	Body Size (inch)	1/2
Connection Type	Male SAE 37 degree flare	Maximum Operating Pressure	4000
Connection Thread Size (inch)	3/4 - 16	Body Material	Steel
Valve Type	Poppet	Coupling Half	Female Coupler
