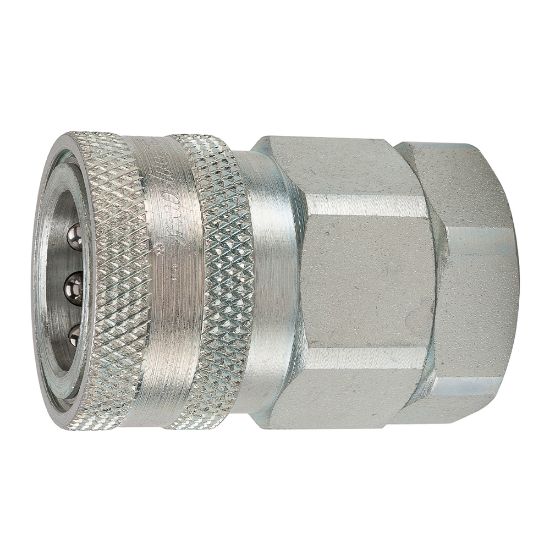

Parker PHC16-16FSL - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PHC16-16FSL

$70.83

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Manual Connect
Valve Type	Unvalved	Maximum Operating Temperature	250 °F
Hex Size	1.88 inch	Plating Type	Zinc with clear trivalent chromate
Seal Material	Nitrile	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Application	General Purpose
Body Material	Steel	Body Size (inch)	1
Body Material	Steel	Valve Type	Unvalved
Connection Type	Female NPTF	Connection Thread Size (inch)	1 - 11 1/2
Maximum Operating Pressure	2000	Coupling Half	Female Coupler
