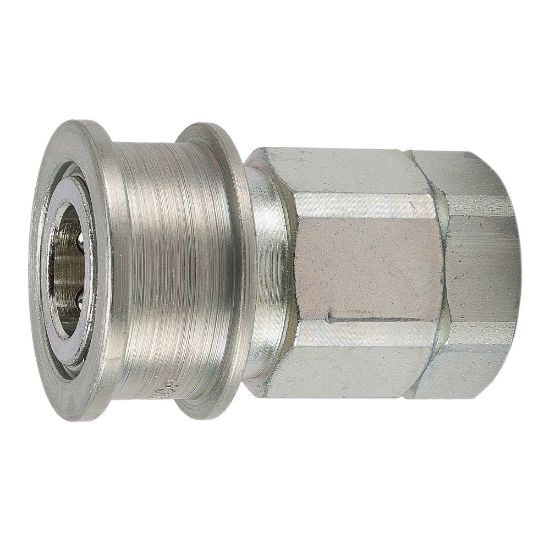

Parker VEAC4-4FV - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VEAC4-4FV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	400 °F	Division	Quick Coupling Division
Minimum Operating Temperature	-15 °F	Seal Material	Flourocarbon
Application	Medium Pressure Hydraulics	Plating Type	Zinc with clear trivalent chromate
Hex Size	0.88 inch	Vacuum Pressure Rating	29.7 Inch-Hg
Product Type	Manual Connect	Valve Type	Poppet
Body Material	Steel	Body Size (inch)	1/4
Maximum Operating Pressure	3000	Connection Thread Size (inch)	1/4 - 18
Connection Type	Female NPTF	Body Material	Steel
Coupling Half	Female Coupler

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
