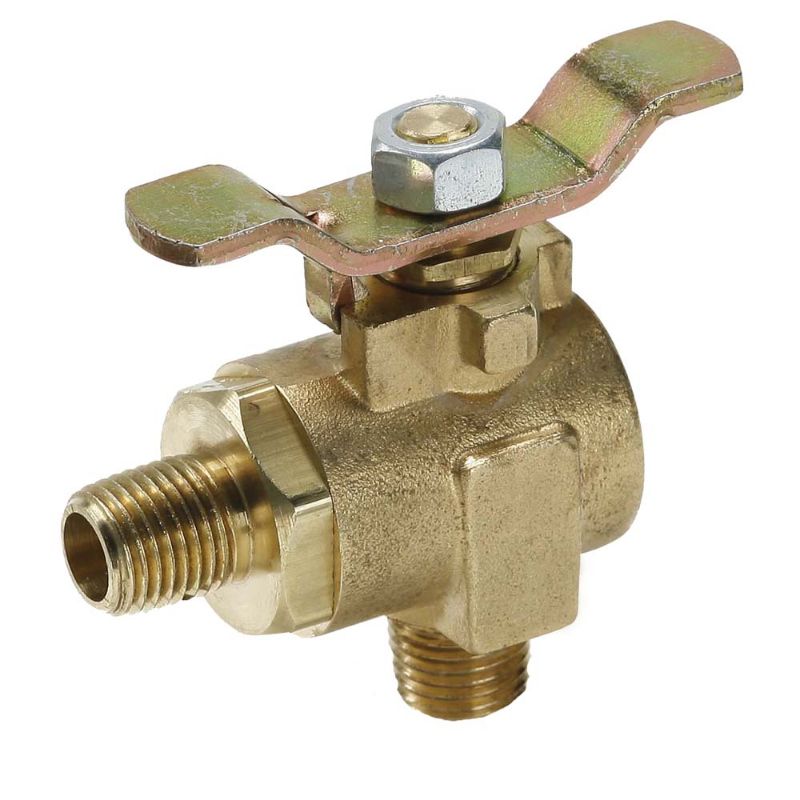

Parker V591P-6 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V591P-6

$59.78/each

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Manual
Orifice Size	.38	Product Type	Brass Series 591 Ball Valve
Shape	Elbow	Minimum Operating Temperature	-50
Function	2-Way, Normally Closed, Normally Open	Handle Type	Tee
Maximum Operating Pressure	17	Connection Size	3/8
Seal Material	PTFE	Maximum Operating Temperature	350
Connection Type	NPT, Straight Thread Solder	Configuration	Male-Male Pipe Ends
Division	Fluid System Connectors Division	Seat Material	PTFE
Operation Type	n/a	Maximum Flow Rate	n/a
Body Material	Brass	Mounting Type	Panel, In-Line
Ball Material	Chrome Plated Brass	Maximum Working Pressure (psi)	250
Connection 2 Thread Size (inch)	3/8	Vented	No
Connection 1 Thread Size (inch)	3/8	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Male Pipe
Connection 1 Solder O.D. (inch)	na	Handle	Steel Tee
Shape	90 Valve	Style	Male to Male
Connection 2 Thread Style	Male Pipe
