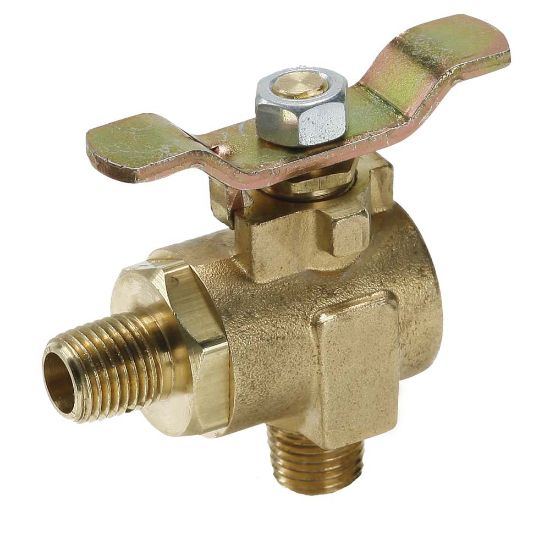

Parker V591P-4 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V591P-4

$45.47

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Seal Material	PTFE
Shape	Elbow	Connection Size	1/4
Minimum Operating Temperature	-50	Maximum Flow Rate	n/a
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Pressure	17	Maximum Operating Temperature	350
Operation Type	n/a	Orifice Size	.38
Ball Material	Chrome Plated Brass	Function	2-Way, Normally Closed, Normally Open
Mounting Type	Panel, In-Line	Handle Type	Tee
Connection Type	NPT, Straight Thread Solder	Product Type	Brass Series 591 Ball Valve
Configuration	Male-Male Pipe Ends	Maximum Working Pressure (psi)	250
Connection 2 Thread Size (inch)	1/4	Vented	No
Connection 2 Solder O.D. (inch)	na	Locking Mechanism	Non-Locking
Connection 1 Thread Size (inch)	1/4	Connection 1 Thread Style	Male Pipe
Connection 1 Solder O.D. (inch)	na	Handle	Steel Tee
Shape	90 Valve	Style	Male to Male
Connection 2 Thread Style	Male Pipe

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
