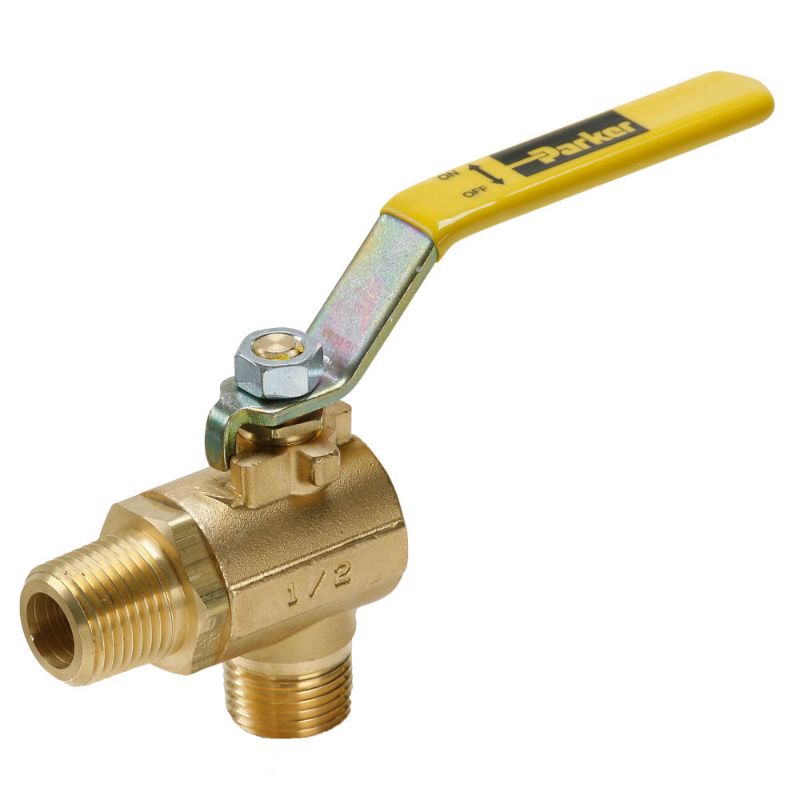

Parker V591P-4-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V591P-4-04

$49.99/each

Products specifications

Attribute name	Attribute value
UOM	EA	Ball Material	Chrome Plated Brass
Maximum Operating Temperature	350	Connection Type	NPT, Straight Thread Solder
Division	Fluid System Connectors Division	Product Type	Brass Series 591 Ball Valve
Shape	Elbow	Minimum Operating Temperature	-50
Body Material	Brass	Mounting Type	Panel, In-Line
Maximum Flow Rate	n/a	Operation Type	n/a
Connection Size	1/4	Actuation Type	Manual
Seal Material	PTFE	Maximum Operating Pressure	17
Orifice Size	.38	Handle Type	Tee
Function	2-Way, Normally Closed, Normally Open	Seat Material	PTFE
Configuration	Male-Male Pipe Ends	Maximum Working Pressure (psi)	250
Connection 2 Thread Size (inch)	1/4	Vented	No
Connection 2 Solder O.D. (inch)	na	Locking Mechanism	Non-Locking
Connection 1 Thread Size (inch)	1/4	Connection 1 Thread Style	Male Pipe
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Shape	90 Valve	Style	Male to Male
Connection 2 Thread Style	Male Pipe
