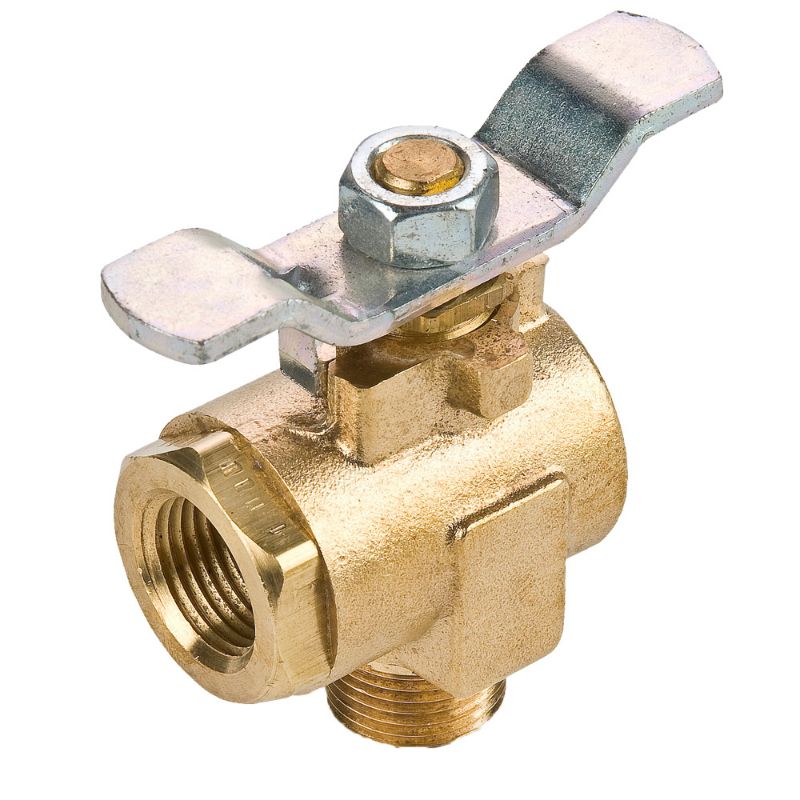

Parker V590P-8 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	39 In Stock

Brand Parker

Part No. V590P-8

$45.39

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Seal Material	PTFE
Maximum Operating Pressure	17 bar	Dimensional Weight	0.27594424460431655 lb
Shape	Elbow	Connection Size	1/2 inch
Minimum Operating Temperature	-45 °C	Maximum Flow Rate	n/a
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Temperature	176 °C	Operation Type	n/a
Ball Material	Chrome Plated Brass	Function	2-Way, Normally Closed, Normally Open
Mounting Type	Panel, In-Line	Handle Type	Tee
Configuration	Male-Female PTF Ports	Connection Type	NPT, Straight Thread Solder
Orifice Size	.50 inch	Product Type	Brass Series 590 Ball Valve
Maximum Working Pressure (psi)	250	Connection 2 Thread Size (inch)	1/2
Vented	No	Connection 1 Thread Size (inch)	1/2
Connection 2 Solder O.D. (inch)	na	Locking Mechanism	Non-Locking
Connection 1 Thread Style	Female Pipe	Style	Female/Male
Connection 1 Solder O.D. (inch)	na	Handle	Steel Tee
Shape	90 Valve	Connection 2 Thread Style	Male Pipe
