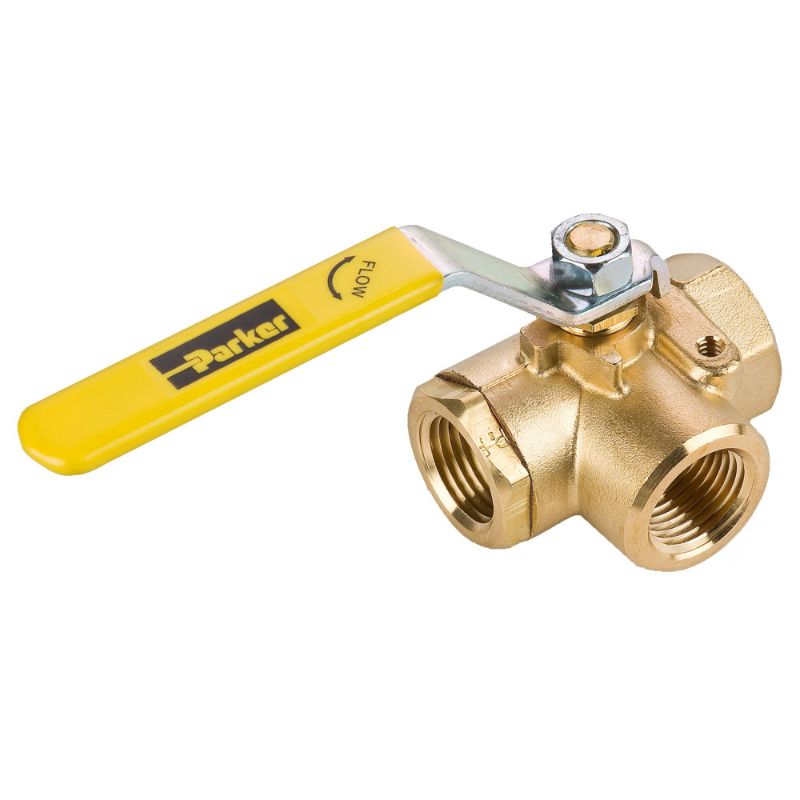

Parker V533P-4 - Industrial Brass Ball Valves

Name: Parker V533P-4 - Industrial Brass Ball Valves
SKU: V533P-4
Price: 94.15 USD
Availability: InStock

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:

24 In Stock

Richmond, VA	9
Norfolk, VA	7
Richmond, VA	5
Richmond, VA	2
Mooresville, NC	1

Partner Available:

57 In Stock

Brand Parker

Part No. V533P-4

$94.15

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Seal Material	PTFE
Minimum Operating Temperature	-20	Connection Size	1/4
Maximum Operating Pressure	27	Maximum Flow Rate	n/a
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Temperature	350	Handle Type	Lever
Operation Type	n/a	Orifice Size	.38
Ball Material	Chrome Plated Brass	Function	2-Way, Normally Closed, Normally Open
Mounting Type	Panel, In-Line	Connection Type	NPT, Straight Thread Solder
Shape	3-Way Diversion	Product Type	3 Way Diversion Brass Series 533 Ball Valve
Configuration	Female-Female-Female Pipe Ends	Connection 2 Thread Size (inch)	1/4
Vented	No	Connection 2 Solder O.D. (inch)	na
Maximum Working Pressure (psi)	400	Locking Mechanism	Non-Locking
Connection 1 Thread Size (inch)	1/4	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Shape	3-Way
