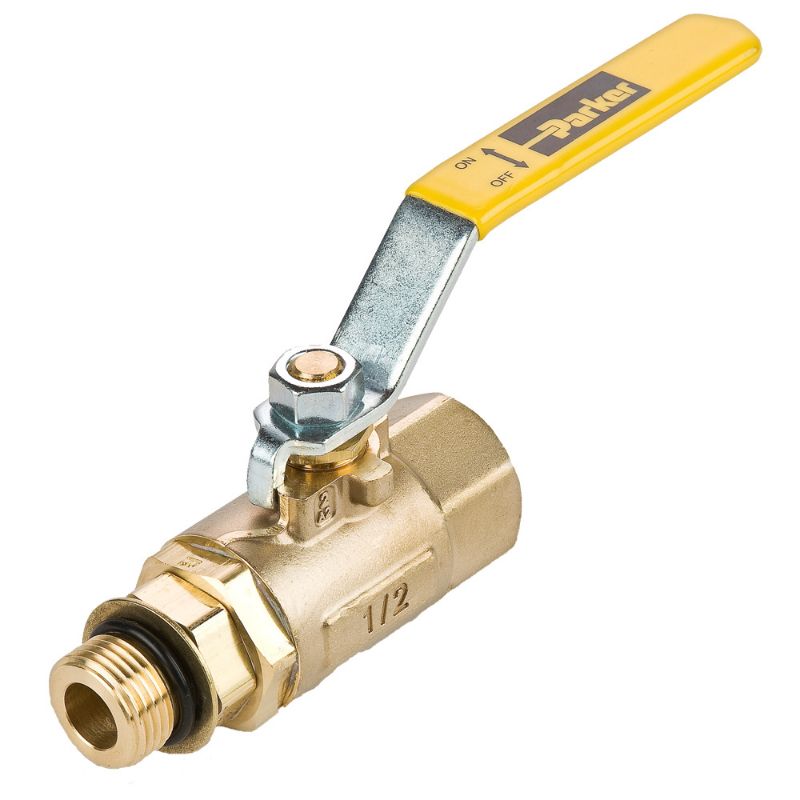

Parker V510P-8 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	62 In Stock

Brand Parker

Part No. V510P-8

$45.75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	5.3
Division	Fluid System Connectors Division	Body Material	Brass
Minimum Operating Temperature	0	Seal Material	PTFE
Connection Size	1/2	Shape	In-Line
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Temperature	350	Handle Type	Lever
Operation Type	n/a	Ball Material	Chrome Plated Brass
Function	2-Way, Normally Closed, Normally Open	Mounting Type	Panel, In-Line
Maximum Operating Pressure	41	Connection Type	NPT, Straight Thread Solder
Orifice Size	.42	Product Type	Brass Series 510 Ball Valve
Configuration	Male-Female STO SAE J1926 Ports	Connection 1 Thread Size (inch)	3/4-16
Connection 2 Thread Size (inch)	3/4-16	Maximum Working Pressure (psi)	600
Vented	No	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Connection 1 Thread Style	Female Straight Thread	Style	Female Straight Thread to Male Straight Thread
Connection 2 Thread Style	Male Straight Thread

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
