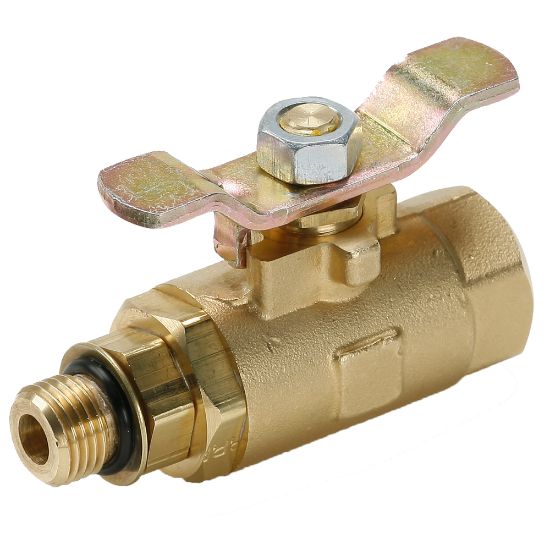

Parker V510P-16-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V510P-16-04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Minimum Operating Temperature	0	Seal Material	PTFE
Connection Size	1	Shape	In-Line
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Temperature	350	Maximum Flow Rate	3
Operation Type	n/a	Ball Material	Chrome Plated Brass
Function	2-Way, Normally Closed, Normally Open	Mounting Type	Panel, In-Line
Maximum Operating Pressure	41	Handle Type	Tee
Orifice Size	.88	Connection Type	NPT, Straight Thread Solder
Product Type	Brass Series 510 Ball Valve	Configuration	Male-Female STO SAE J1926 Ports
Maximum Working Pressure (psi)	600	Vented	No
Connection 2 Solder O.D. (inch)	na	Locking Mechanism	Non-Locking
Shape	In Line	Connection 1 Solder O.D. (inch)	na
Handle	Steel Tee	Connection 1 Thread Style	Female Straight Thread
Connection 1 Thread Size (inch)	1 5/16-12	Connection 2 Thread Size (inch)	1 5/16-12
Style	Female Straight Thread to Male Straight Thread	Connection 2 Thread Style	Male Straight Thread
