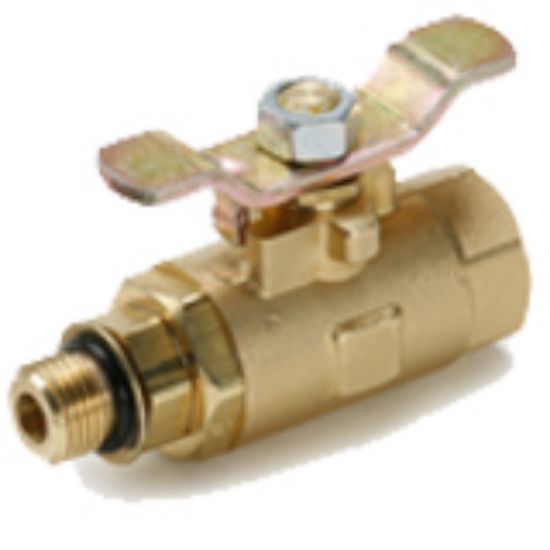

Parker V510P-10-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V510P-10-04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Minimum Operating Temperature	0	Seal Material	PTFE
Connection Size	5/8	Shape	In-Line
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Temperature	350	Operation Type	n/a
Ball Material	Chrome Plated Brass	Function	2-Way, Normally Closed, Normally Open
Mounting Type	Panel, In-Line	Maximum Operating Pressure	41
Handle Type	Tee	Orifice Size	.50
Connection Type	NPT, Straight Thread Solder	Maximum Flow Rate	7.6
Product Type	Brass Series 510 Ball Valve	Configuration	Male-Female STO SAE J1926 Ports
Connection 1 Thread Size (inch)	7/8-14	Connection 2 Thread Size (inch)	7/8-14
Maximum Working Pressure (psi)	600	Vented	No
Connection 2 Solder O.D. (inch)	na	Locking Mechanism	Non-Locking
Shape	In Line	Connection 1 Solder O.D. (inch)	na
Handle	Steel Tee	Connection 1 Thread Style	Female Straight Thread
Style	Female Straight Thread to Male Straight Thread	Connection 2 Thread Style	Male Straight Thread
