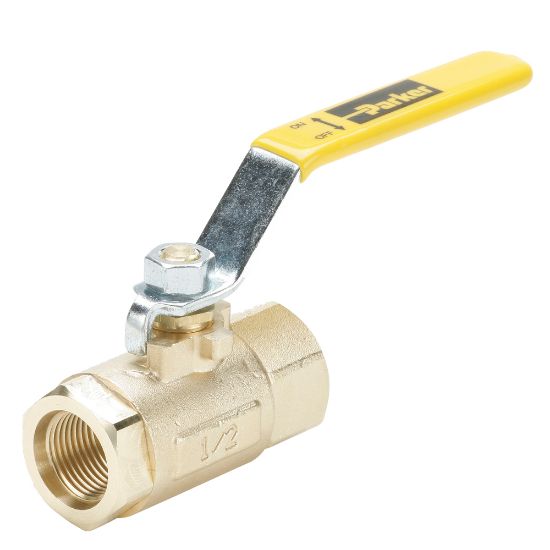

Parker V506P-16 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	77 In Stock

Brand Parker

Part No. V506P-16

$129.05

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Minimum Operating Temperature	0
Seal Material	PTFE	Connection Size	1
Maximum Flow Rate	n/a	Shape	In-Line
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Temperature	350	Handle Type	Lever
Operation Type	n/a	Ball Material	Chrome Plated Brass
Function	2-Way, Normally Closed, Normally Open	Mounting Type	Panel, In-Line
Maximum Operating Pressure	41	Orifice Size	.88
Connection Type	NPT, Straight Thread Solder	Product Type	Brass Series 506 Ball Valve
Configuration	Female-Female SAE J1926-1 Ports	Connection 1 Thread Size (inch)	1 5/16-12
Connection 2 Thread Size (inch)	1 5/16-12	Maximum Working Pressure (psi)	600
Vented	No	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Style	Female Straight Thread to Female Straight Thread	Connection 1 Thread Style	Female Straight Thread
Connection 2 Thread Style	Female Straight Thread
