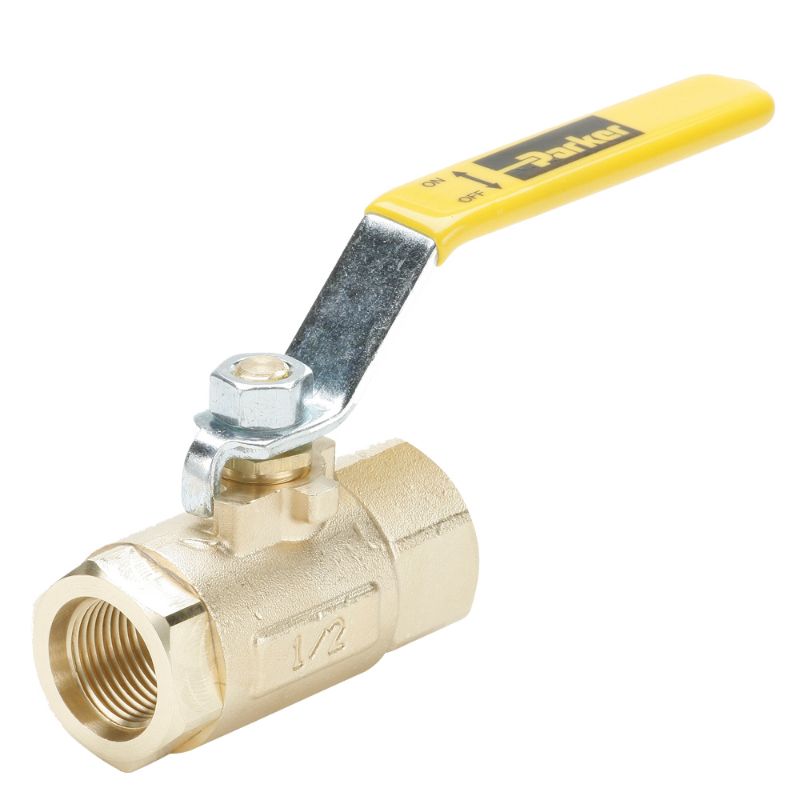

Parker V506P-12 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

AFP Availability:	Quote Required
Partner Available:	417 In Stock

Brand Parker

Part No. V506P-12

$183.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Brass Series 506 Ball Valve
Orifice Size	.69	Shape	In-Line
Minimum Operating Temperature	0	Maximum Operating Pressure	41
Seal Material	PTFE	Actuation Type	Manual
Connection Size	3/4	Connection Type	NPT, Straight Thread Solder
Division	Fluid System Connectors Division	Maximum Operating Temperature	350
Seat Material	PTFE	Configuration	Female-Female SAE J1926-1 Ports
Handle Type	Lever	Function	2-Way, Normally Closed, Normally Open
Operation Type	n/a	Maximum Flow Rate	n/a
Body Material	Brass	Mounting Type	Panel, In-Line
Ball Material	Chrome Plated Brass	Connection 1 Thread Size (inch)	1 1/16-12
Connection 2 Thread Size (inch)	1 1/16-12	Maximum Working Pressure (psi)	600
Vented	No	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Style	Female Straight Thread to Female Straight Thread	Connection 1 Thread Style	Female Straight Thread
Connection 2 Thread Style	Female Straight Thread
