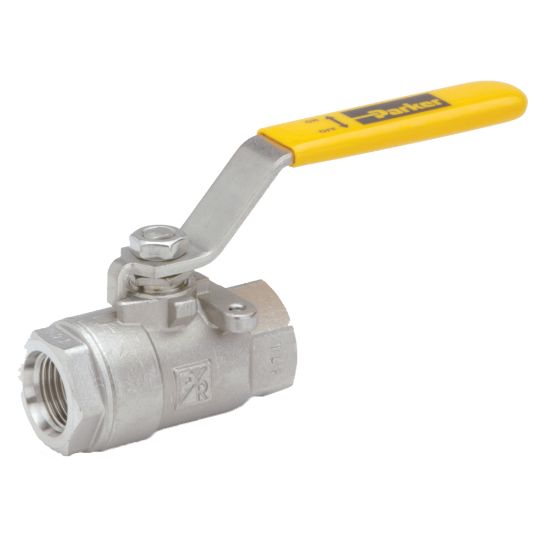

Parker V502SS-32 - Industrial Ball Valves - Stainless Steel

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V502SS-32

$569.58

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Vacuum Pressure Rating	28	Minimum Operating Temperature	0
Seal Material	PTFE	Maximum Operating Pressure	1500
Connection Type	NPT	Maximum Operating Temperature	400
Function	2-Way	Actuation Type	Manual
Connection Size	2	Product Type	Ball Valve
Handle Type	Lever	Seat Material	Stainless Steel
Operation Type	n/a	Mounting Type	Panel
Body Material	CF-8M Stainless Steel	Shape	Panel Mount
Ball Material	PTFE	Specifications Met	NACE MR-01-75
Orifice Size	2.0	Configuration	Female NPT
Maximum Flow Rate	226	Locking Mechanism	Non-Locking
Style	Female Pipe Ends	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Shape	Panel mount
Connection 1 Thread Size (inch)	2	Connection 2 Thread Size (inch)	2
Handle	Stainless Steel Lever
