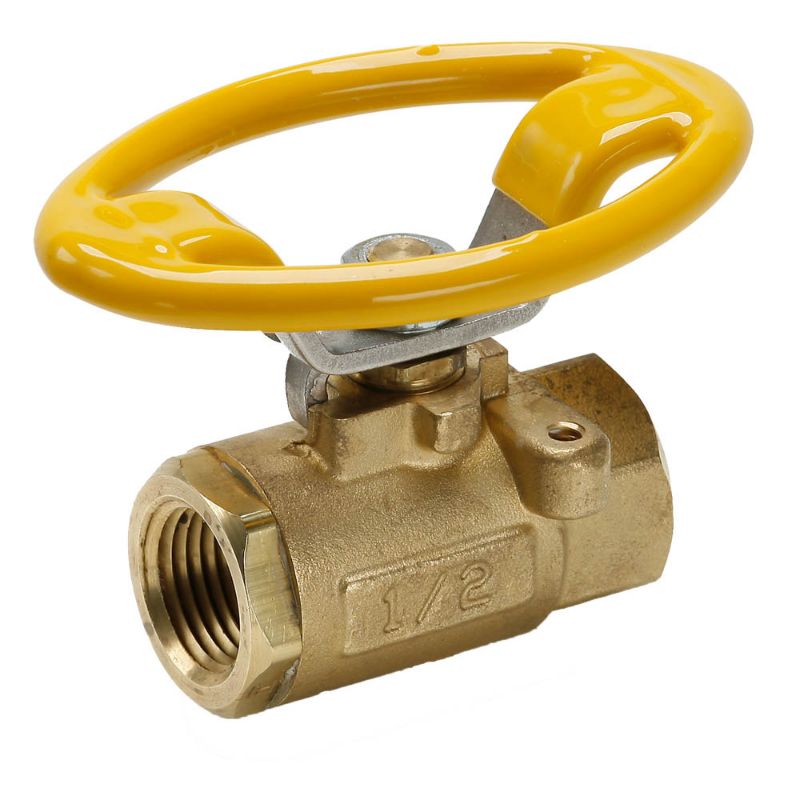

Parker V502P-8-21 - Industrial Brass Ball Valves

Name: Parker V502P-8-21 - Industrial Brass Ball Valves
SKU: V502P-8-21
Price: 80.14 USD
Availability: InStock

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

AFP Availability:

7 In Stock

Norfolk, VA

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. V502P-8-21

$80.14/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Brass Series 502 Ball Valve
Shape	In-Line	Minimum Operating Temperature	0
Body Material	Brass	Mounting Type	Panel, In-Line
Maximum Flow Rate	12	Operation Type	n/a
Connection Size	1/2	Seal Material	PTFE
Maximum Operating Pressure	41	Orifice Size	.50
Actuation Type	Manual	Seat Material	PTFE
Division	Fluid System Connectors Division	Configuration	Female-Female PTF Ports
Handle Type	Oval	Function	2-Way, Normally Closed, Normally Open
Ball Material	Chrome Plated Brass	Maximum Operating Temperature	350
Connection Type	NPT, Straight Thread Solder	Connection 2 Thread Size (inch)	1/2
Maximum Working Pressure (psi)	600	Vented	No
Connection 1 Thread Size (inch)	1/2	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Connection 1 Solder O.D. (inch)	na	Shape	Panel mount
Handle	Steel Oval
