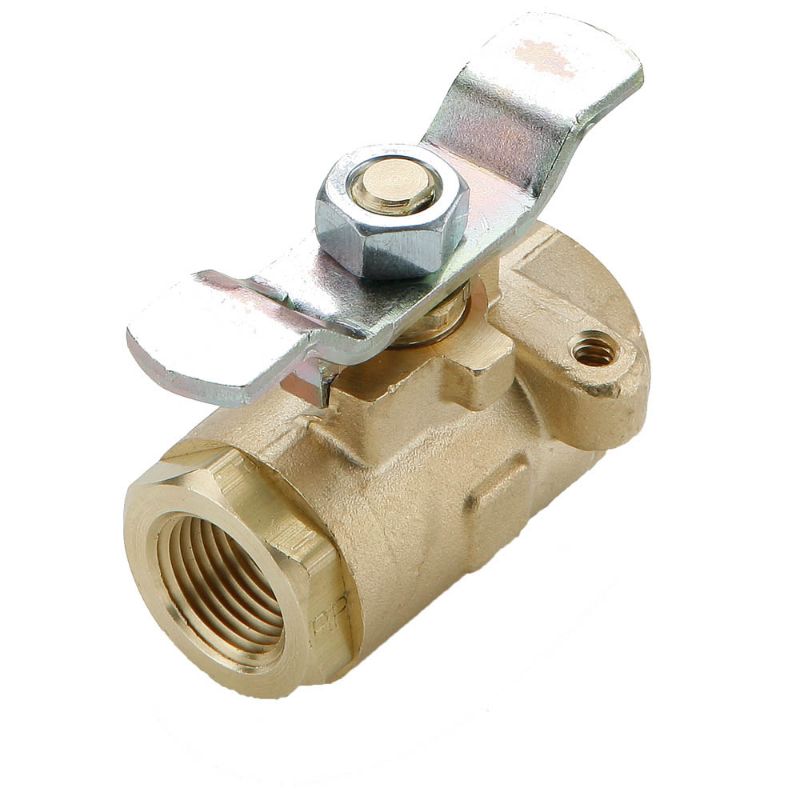

Parker V502P-4-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V502P-4-04

$50.98/each

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	0
Product Type	Brass Series 502 Ball Valve	Shape	In-Line
Mounting Type	Panel, In-Line	Maximum Flow Rate	4
Operation Type	n/a	Body Material	Brass
Maximum Operating Pressure	41	Actuation Type	Manual
Seal Material	PTFE	Connection Size	1/4
Orifice Size	.38	Function	2-Way, Normally Closed, Normally Open
Handle Type	Tee	Configuration	Female-Female PTF Ports
Seat Material	PTFE	Ball Material	Chrome Plated Brass
Division	Fluid System Connectors Division	Maximum Operating Temperature	350
Connection Type	NPT, Straight Thread Solder	Connection 2 Thread Size (inch)	1/4
Maximum Working Pressure (psi)	600	Vented	No
Connection 2 Solder O.D. (inch)	na	Locking Mechanism	Non-Locking
Connection 1 Thread Size (inch)	1/4	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Connection 1 Solder O.D. (inch)	na	Shape	Panel mount
Handle	Steel Tee
