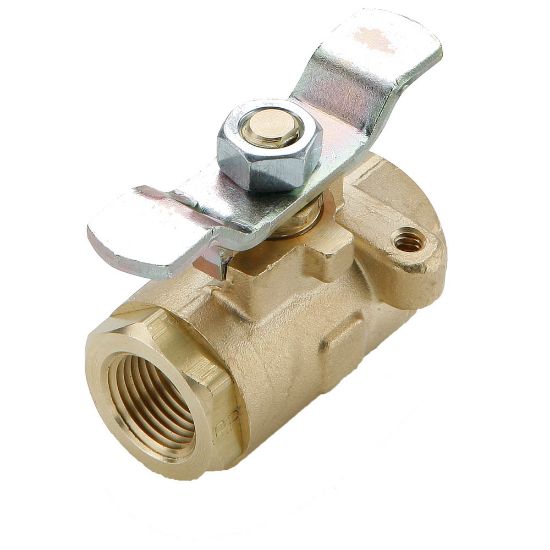

Parker V502P-16-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V502P-16-04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Minimum Operating Temperature	0	Seal Material	PTFE
Connection Size	1	Shape	In-Line
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Temperature	350	Product Type	Ball Valve
Maximum Flow Rate	35	Operation Type	n/a
Ball Material	Chrome Plated Brass	Function	2-Way, Normally Closed, Normally Open
Mounting Type	Panel, In-Line	Maximum Operating Pressure	41
Handle Type	Tee	Orifice Size	.88
Configuration	Female-Female PTF Ports	Connection Type	NPT, Straight Thread Solder
Maximum Working Pressure (psi)	600	Vented	No
Connection 2 Solder O.D. (inch)	na	Locking Mechanism	Non-Locking
Connection 1 Thread Style	Female Pipe	Connection 2 Thread Style	Female Pipe
Style	Female to Female	Connection 1 Solder O.D. (inch)	na
Shape	Panel mount	Connection 1 Thread Size (inch)	1
Connection 2 Thread Size (inch)	1	Handle	Steel Tee
