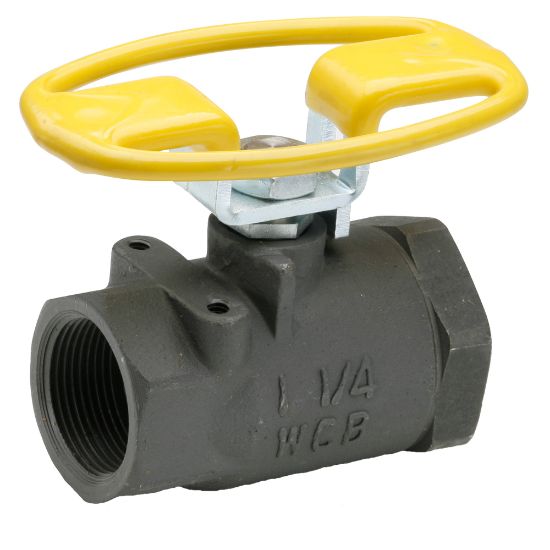

Parker V502CS-32-21 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V502CS-32-21

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Specifications Met	N/A
Seal Material	PTFE	Maximum Operating Pressure	103
Maximum Flow Rate	n/a	Shape	In-Line
Actuation Type	Manual	Seat Material	PTFE
Connection Size	2	Product Type	Ball Valve
Function	Ball Valve	Minimum Operating Temperature	-10
Orifice Size	n/a	Operation Type	n/a
Ball Material	Steel	Configuration	In-line
Mounting Type	Panel	Body Material	Carbon Steel
Maximum Operating Temperature	210	Handle Type	Oval
Connection Type	NPT, Straight Thread, SAE J1926-1	Maximum Working Pressure (psi)	1500
Locking Mechanism	Non-Locking	Style	Female Pipe Ends
Connection 1 Thread Style	Female Pipe	Connection 2 Thread Style	Female Pipe
Shape	Panel mount	Connection 1 Thread Size (inch)	2
Connection 2 Thread Size (inch)	2	Handle	Steel Oval

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
