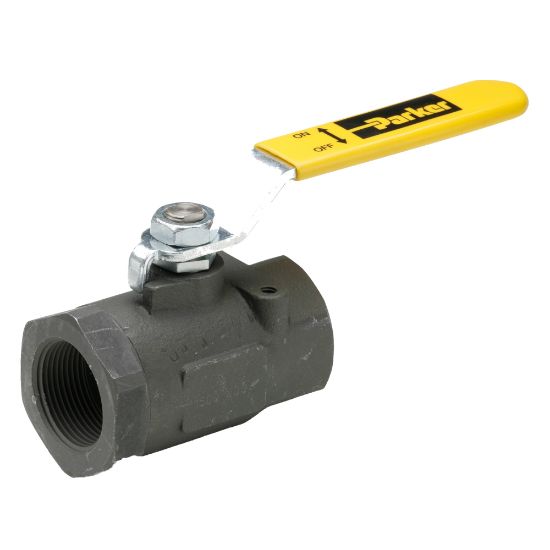

Parker V502CS-20 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V502CS-20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Specifications Met	N/A
Seal Material	PTFE	Maximum Operating Pressure	103
Connection Size	1 1/4	Maximum Flow Rate	n/a
Shape	In-Line	Actuation Type	Manual
Seat Material	PTFE	Product Type	Ball Valve
Function	Ball Valve	Handle Type	Lever
Minimum Operating Temperature	-10	Orifice Size	n/a
Operation Type	n/a	Ball Material	Steel
Configuration	In-line	Mounting Type	Panel
Body Material	Carbon Steel	Maximum Operating Temperature	210
Connection Type	NPT, Straight Thread, SAE J1926-1	Maximum Working Pressure (psi)	1500
Locking Mechanism	Non-Locking	Style	Female Pipe Ends
Connection 1 Thread Style	Female Pipe	Connection 2 Thread Style	Female Pipe
Shape	Panel mount	Connection 1 Thread Size (inch)	1 1/4
Connection 2 Thread Size (inch)	1 1/4	Handle	Steel Lever
