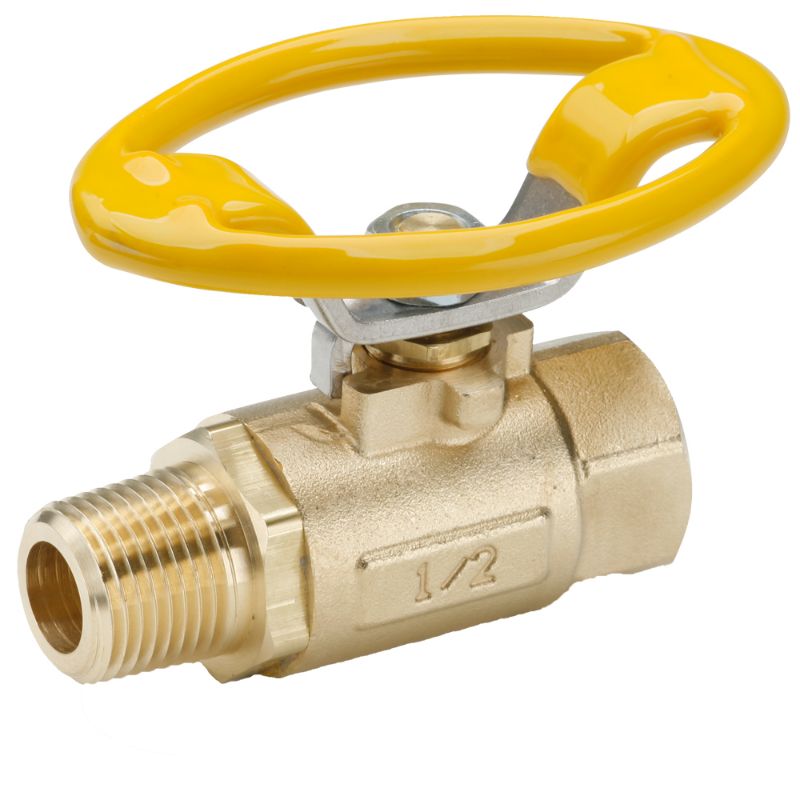

Parker V501P-8-21 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V501P-8-21

$64.68/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	41
Seat Material	PTFE	Ball Material	Chrome Plated Brass
Connection Type	NPT, Straight Thread Solder	Division	Fluid System Connectors Division
Maximum Operating Temperature	350	Minimum Operating Temperature	0
Body Material	Brass	Connection 2 Thread Size (inch)	1/2
Maximum Working Pressure (psi)	600	Vented	No
Connection 1 Thread Size (inch)	1/2	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 2 Thread Style	Female Pipe
Style	Female/Male	Connection 1 Thread Style	Male Pipe
Shape	In Line	Connection 1 Solder O.D. (inch)	na
Handle	Steel Oval
