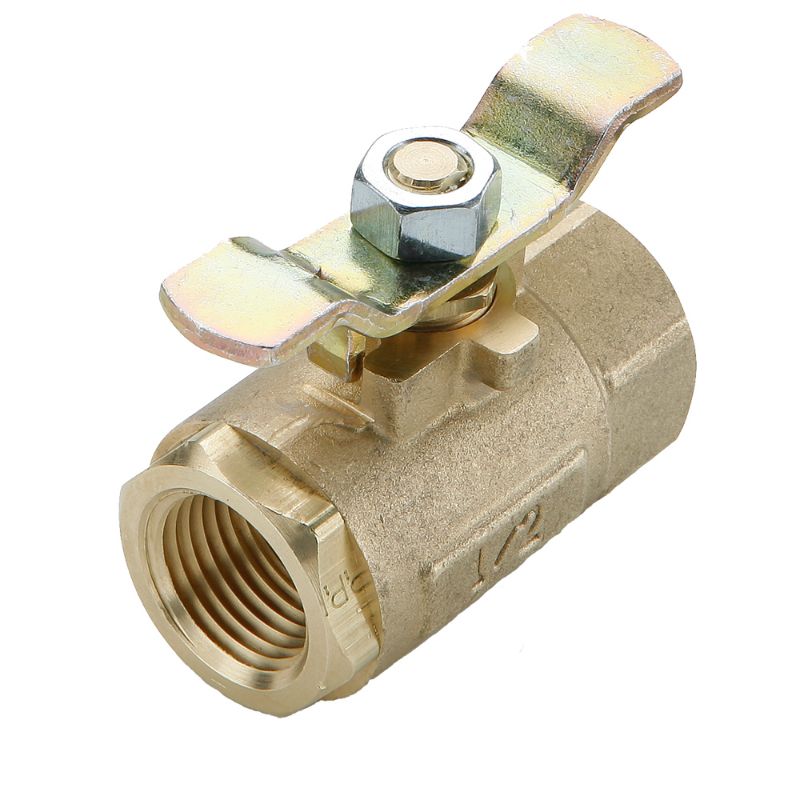

Parker V500P-16-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V500P-16-04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Mounting Type	Panel, In-Line
Minimum Operating Temperature	0	Product Type	Brass Series 500 Ball Valve
Ball Material	Chrome Plated Brass	Operation Type	n/a
Handle Type	Lever	Actuation Type	Manual
Body Material	Brass	Maximum Operating Temperature	350
Maximum Operating Pressure	41	Orifice Size	.88
Seat Material	PTFE	Seal Material	PTFE
Connection Size	1	Function	2-Way, Normally Closed, Normally Open
Configuration	Female-Female PTF Ports	Maximum Flow Rate	35
Connection Type	NPT, Straight Thread Solder	Shape	In-Line
Locking Mechanism	Non-Locking	Handle	Tee Handle
Vented	No	Connection 1 Thread Style	Female Pipe
Connection 1 Solder O.D. (inch)	na	Maximum Working Pressure (psi)	600
Connection 1 Thread Size (inch)	1	Connection 2 Solder O.D. (inch)	na
Shape	In Line	Connection 2 Thread Size (inch)	1
Style	Female to Female	Connection 2 Thread Style	Female Pipe
